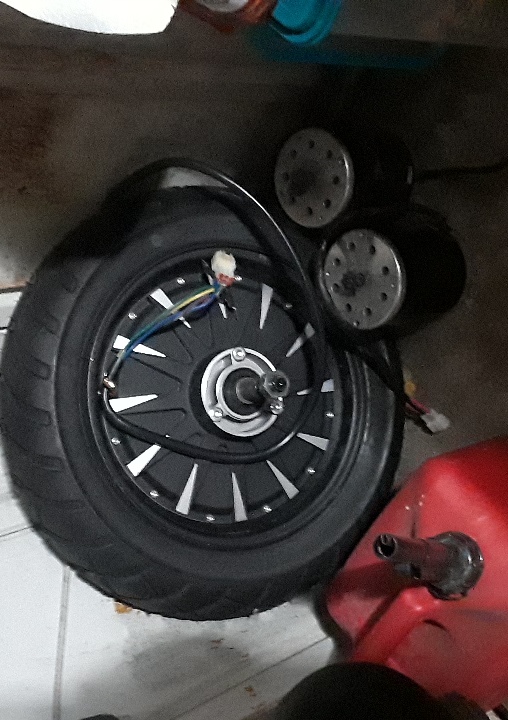

QS Motor 2000 Watt type 260 hub motor leftover from Wife's scooter upgrade.

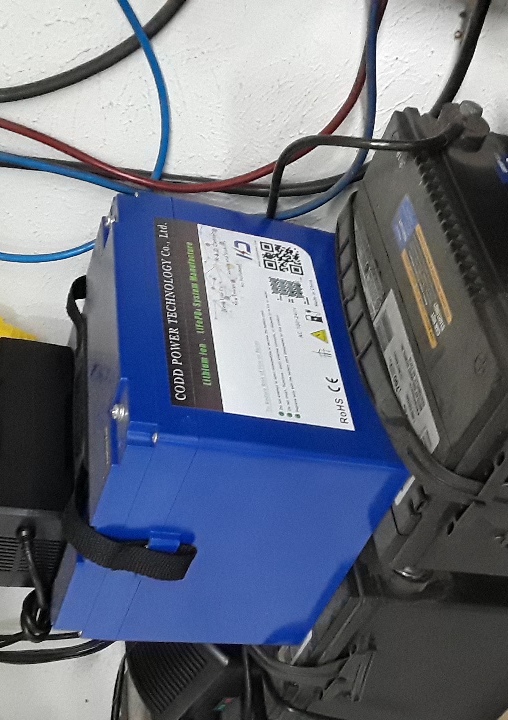

96 volt 15 amp hour lithium ion battery from Aliexpress

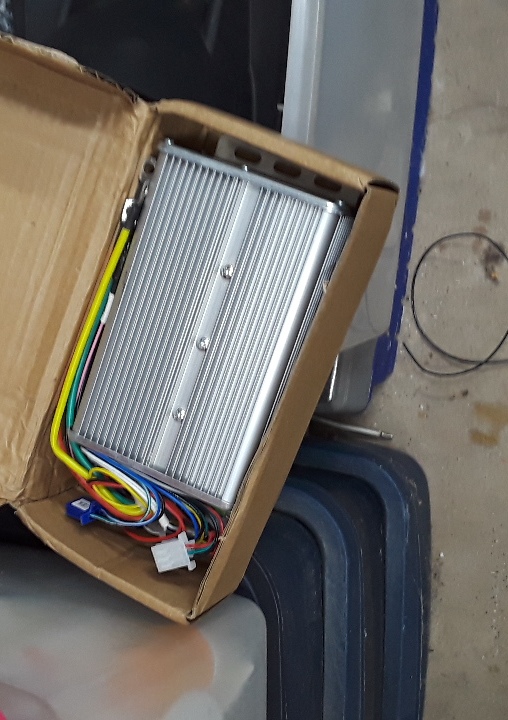

96 volt 2000 watt BLDC from Aliexpress model Yuanxi

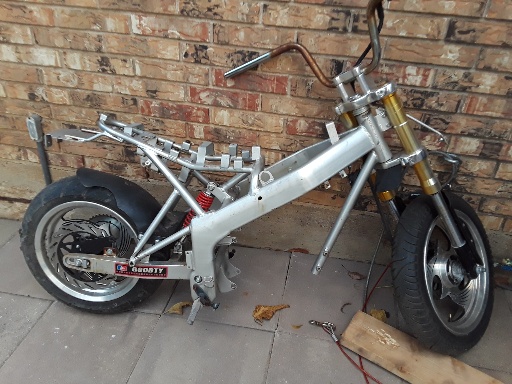

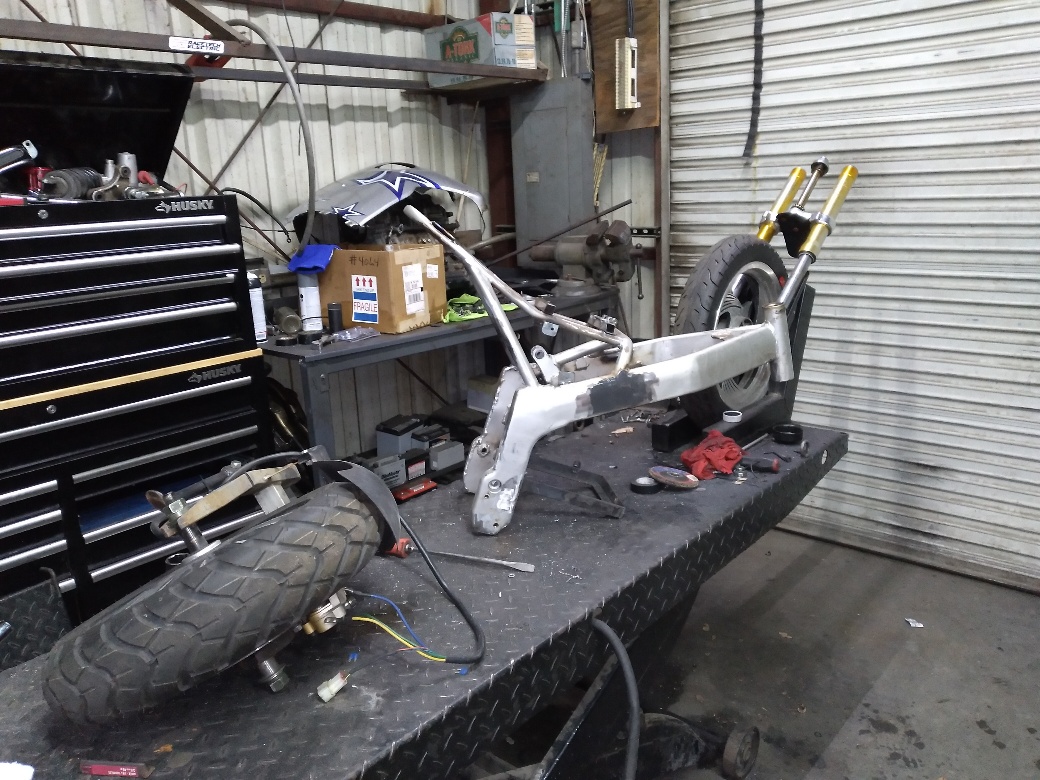

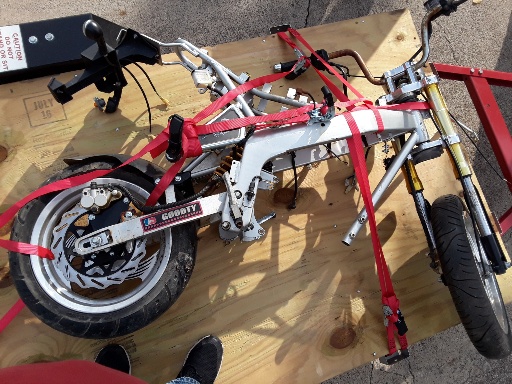

2007 Bashan BS125 picked up from Craigslist for $50

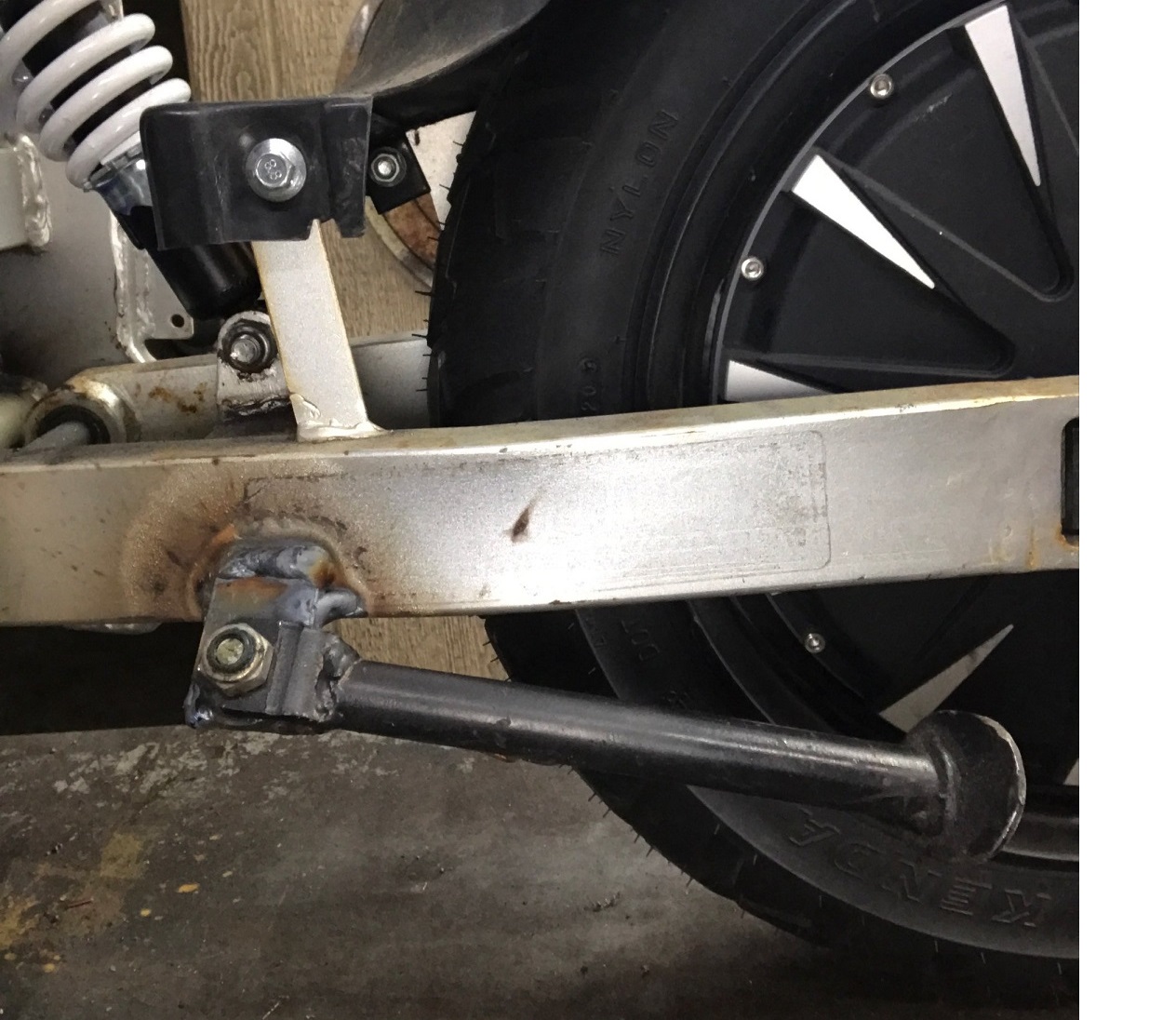

Kickstand welded on at my local motorcycle shop. Alex's Motorcycle Repair in Grand Prairie.

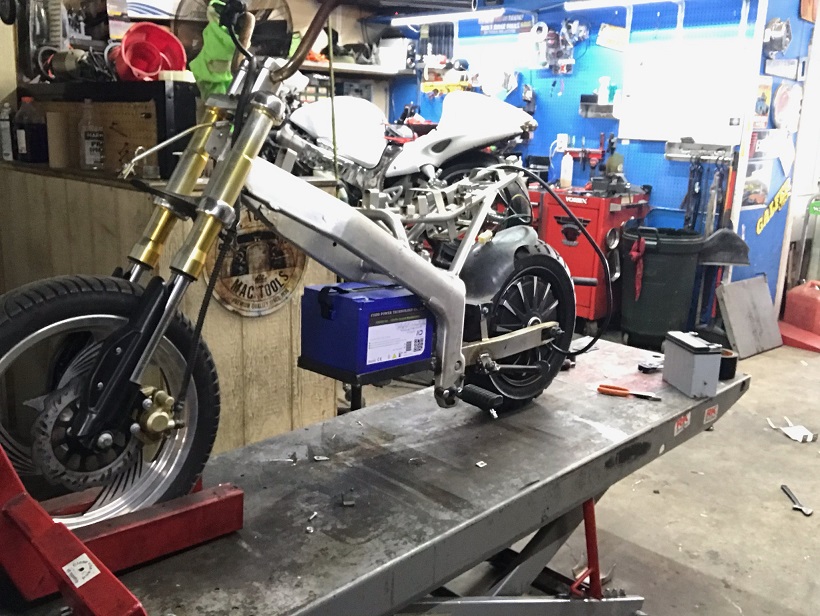

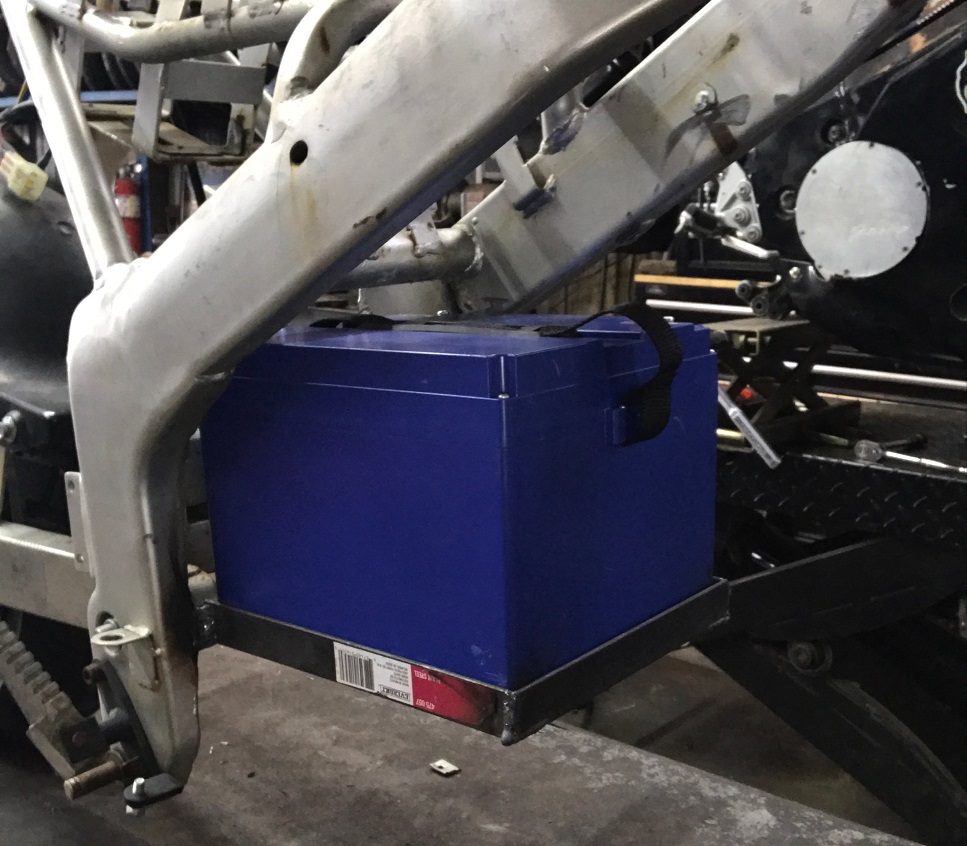

Battery box mounted
Motor mounted
Extra metal removed
Thinking about wrapping battery box in chrome
Cavity to mount controller and wiring.

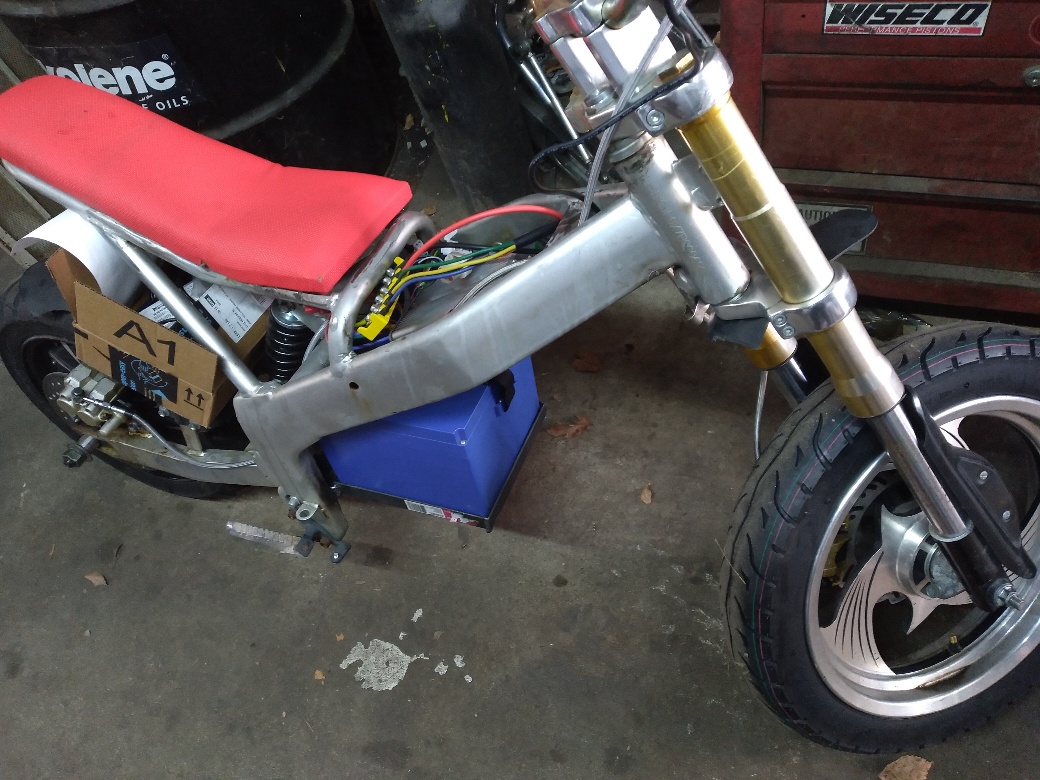

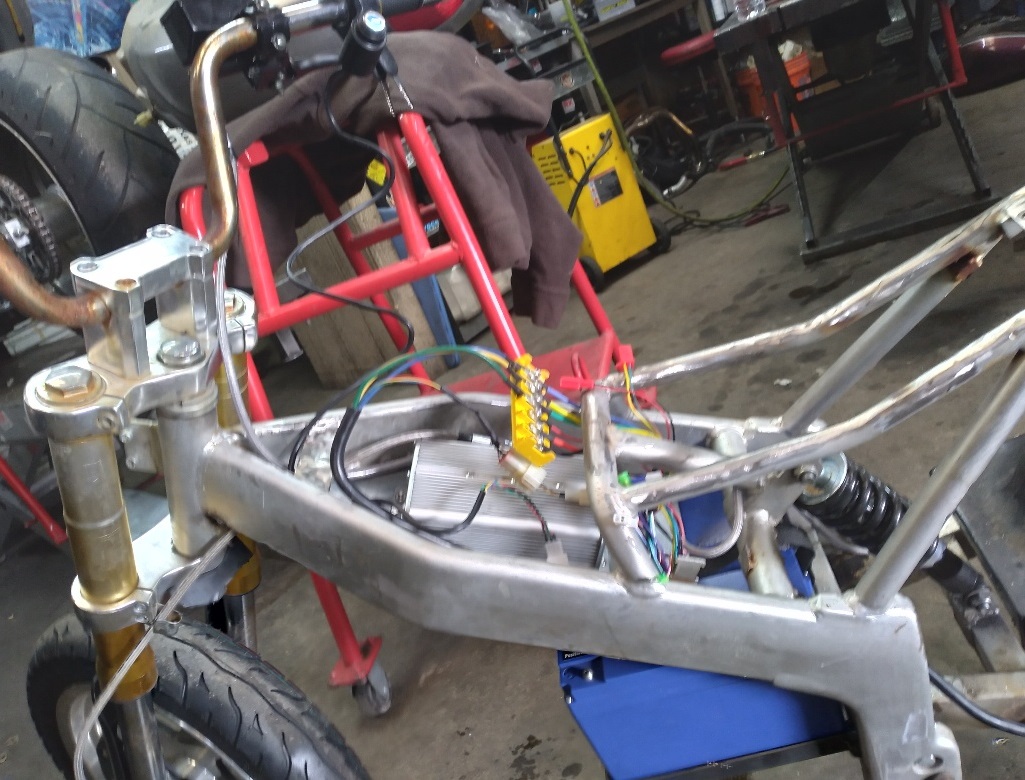

Controller test fitted
Haven't figured out a seat yet. It moves.

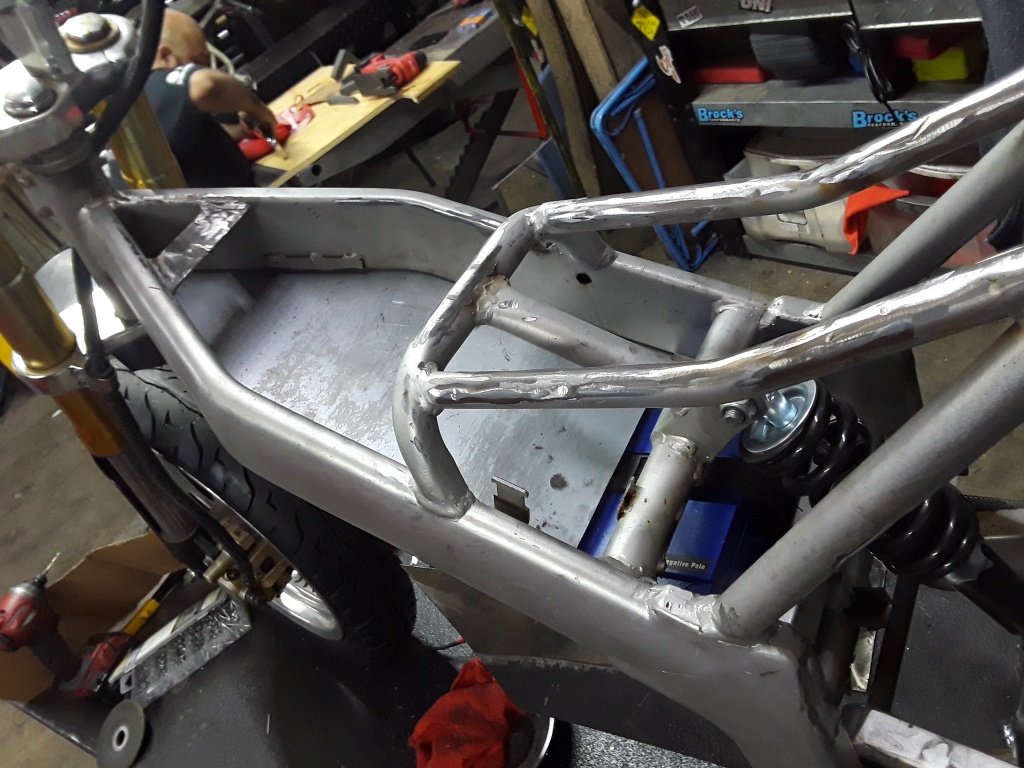

Used tin as template to cut out 1/8 aluminum for the electrics cavity

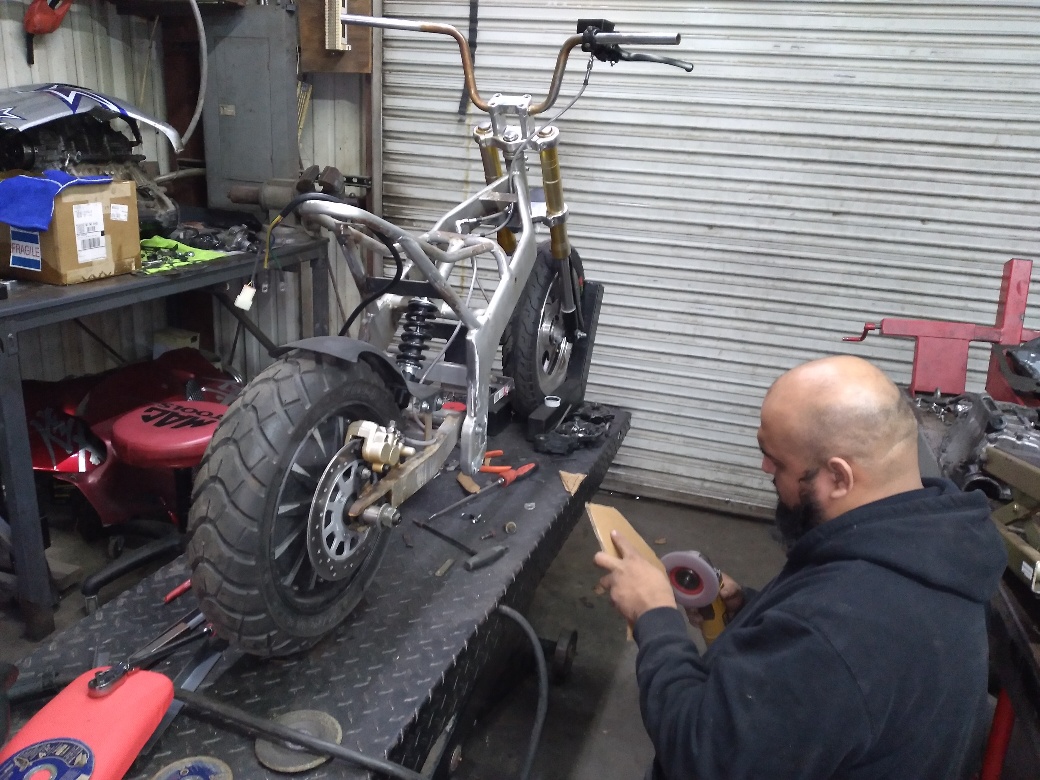

Working with Alex to mock up side panels and weld mounting ears for panels
panels on

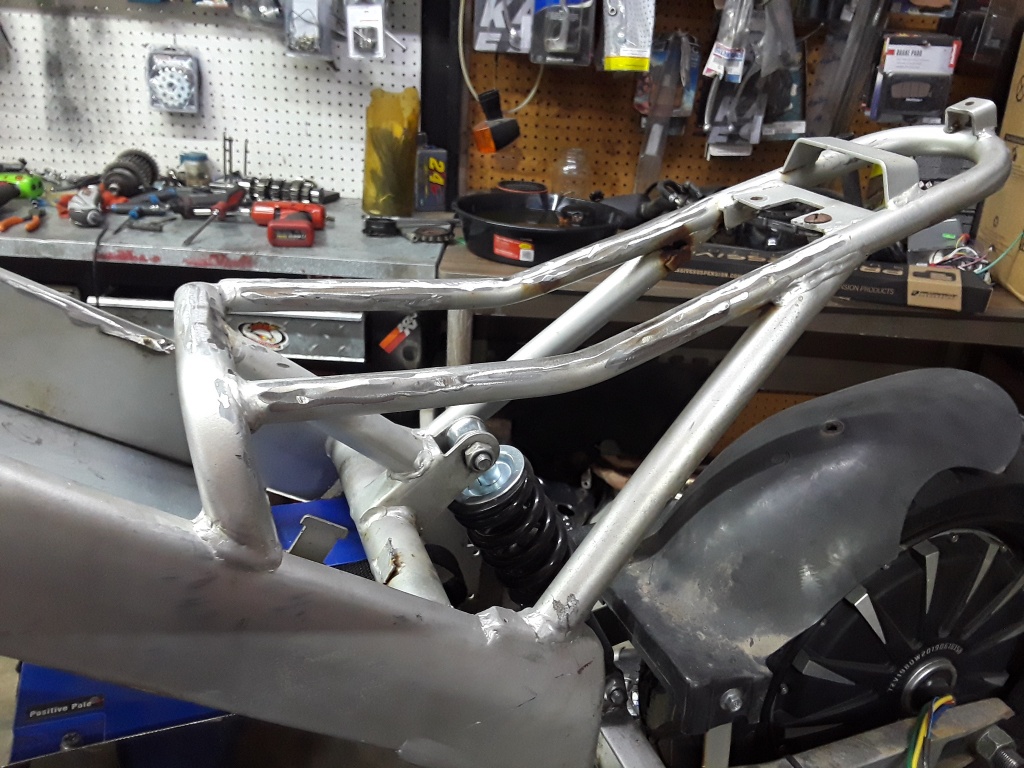

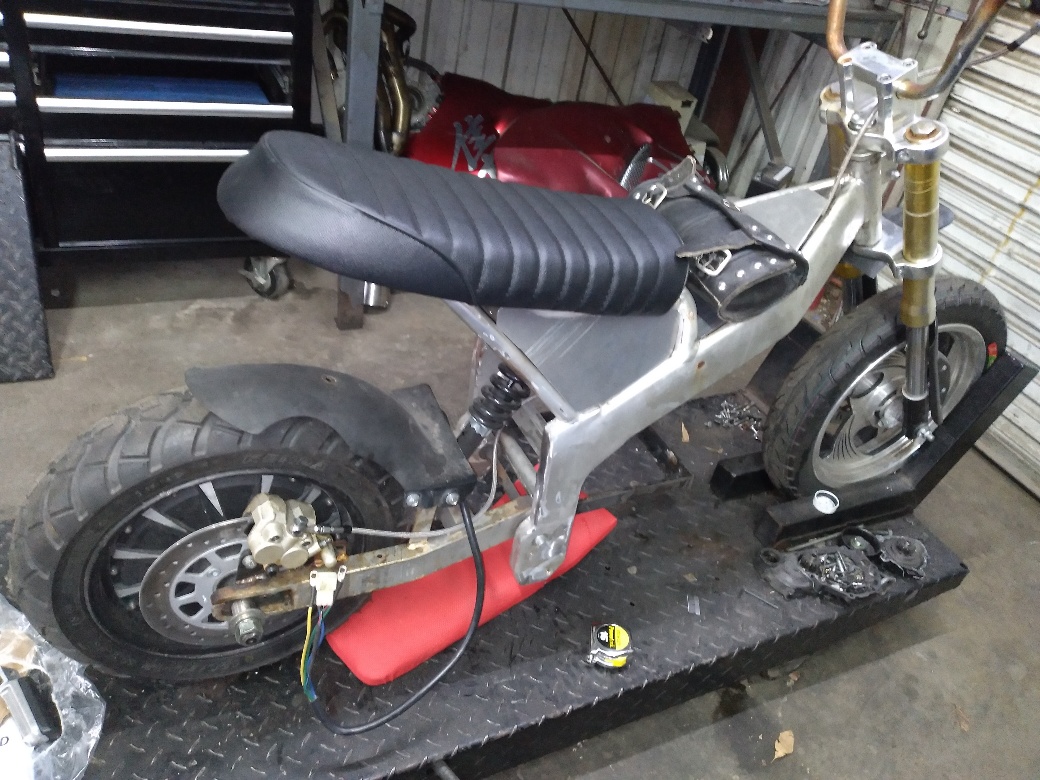

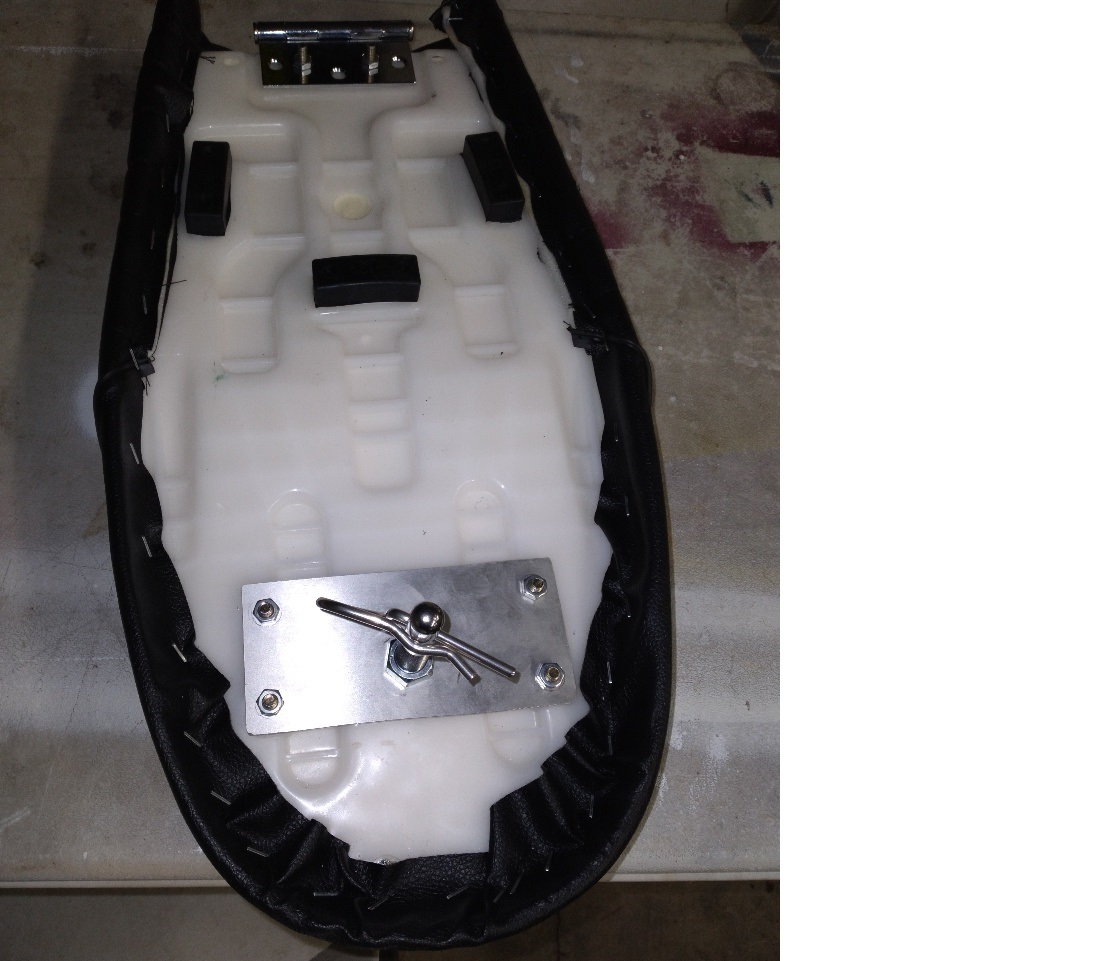

Picked up a bike seat from amazon. Used a door hinge and made a bracket to hold a hood pin.

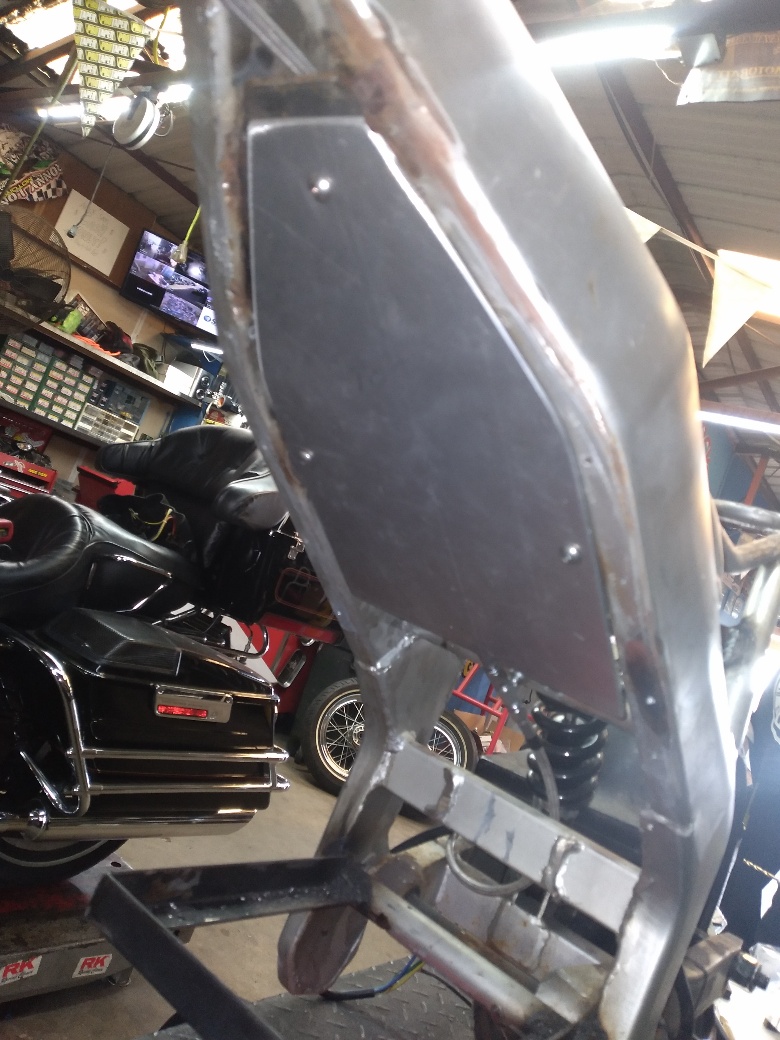

Bottom electrics panel

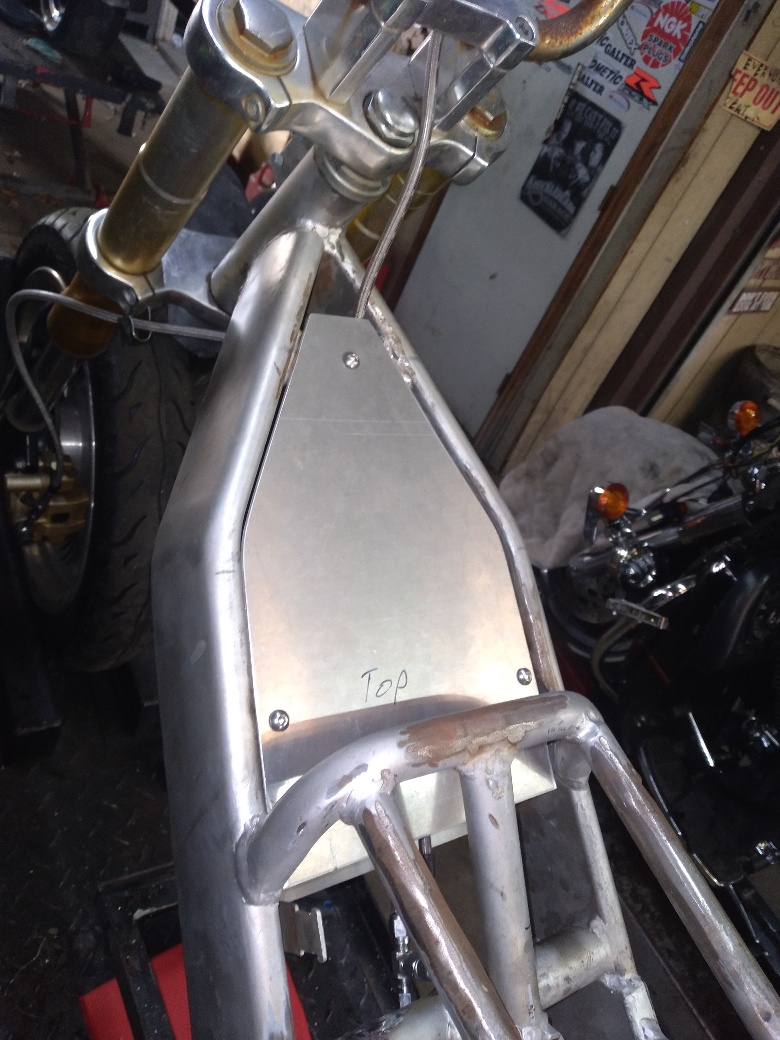

Top electrics panel

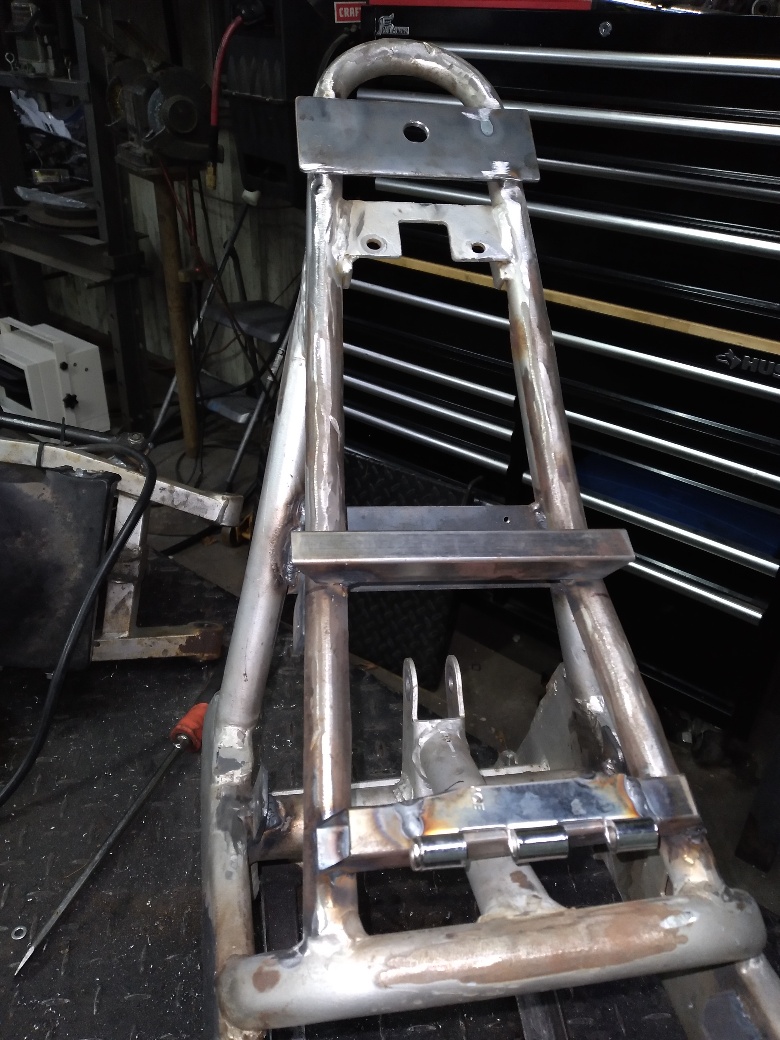

Theres that door hinge welded to frame
Stripped down and ready for powder coating

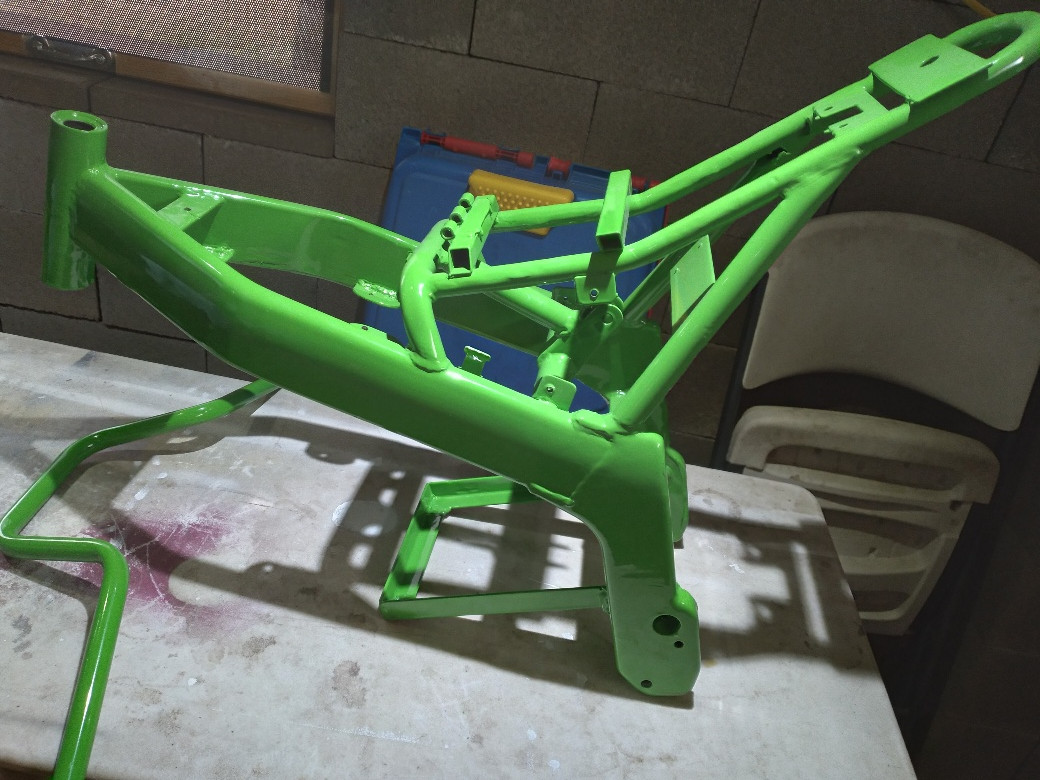

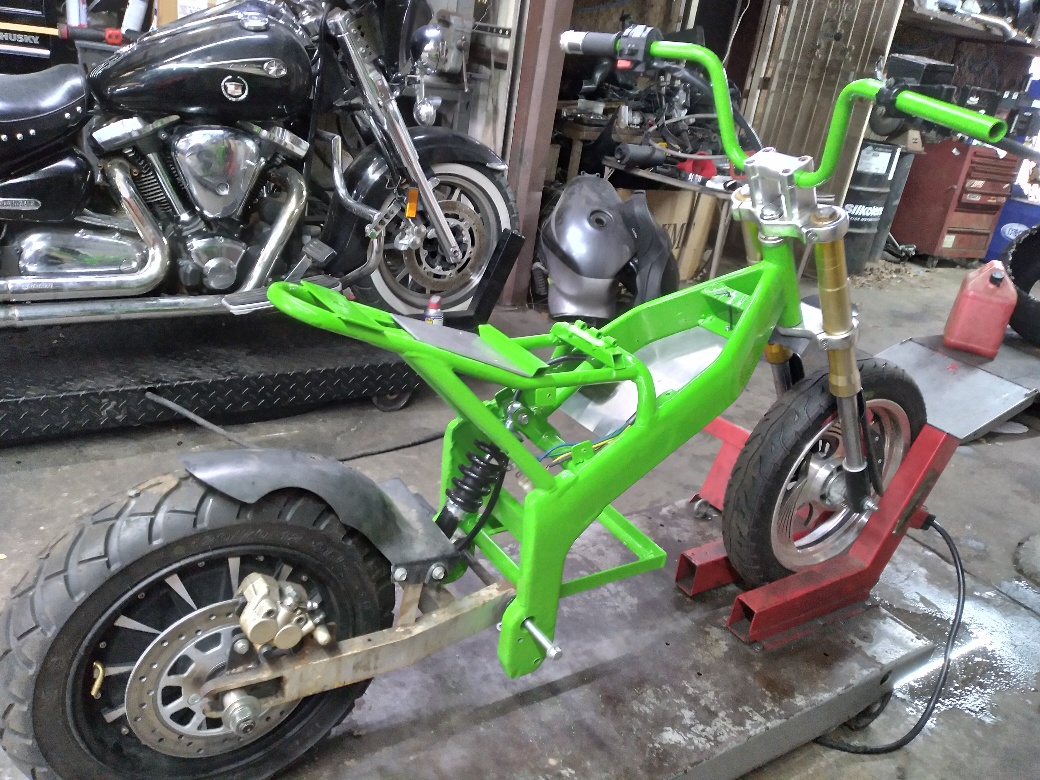

Kawasaki green. It's a smaller bike and need the color to be seen.

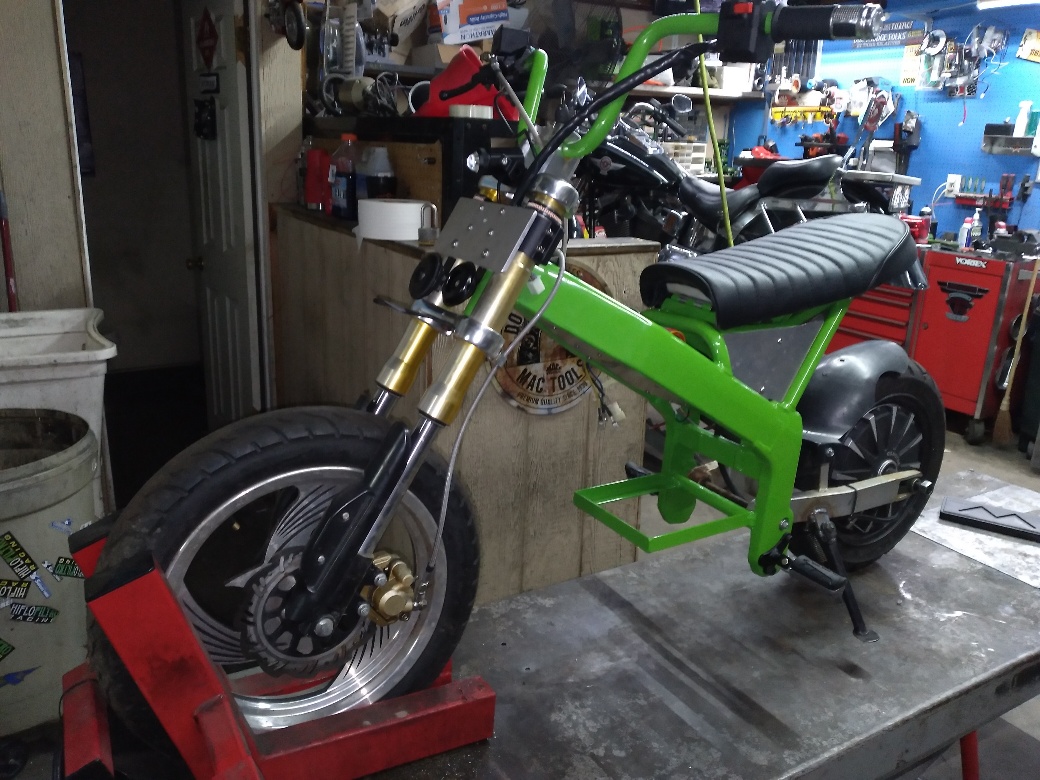

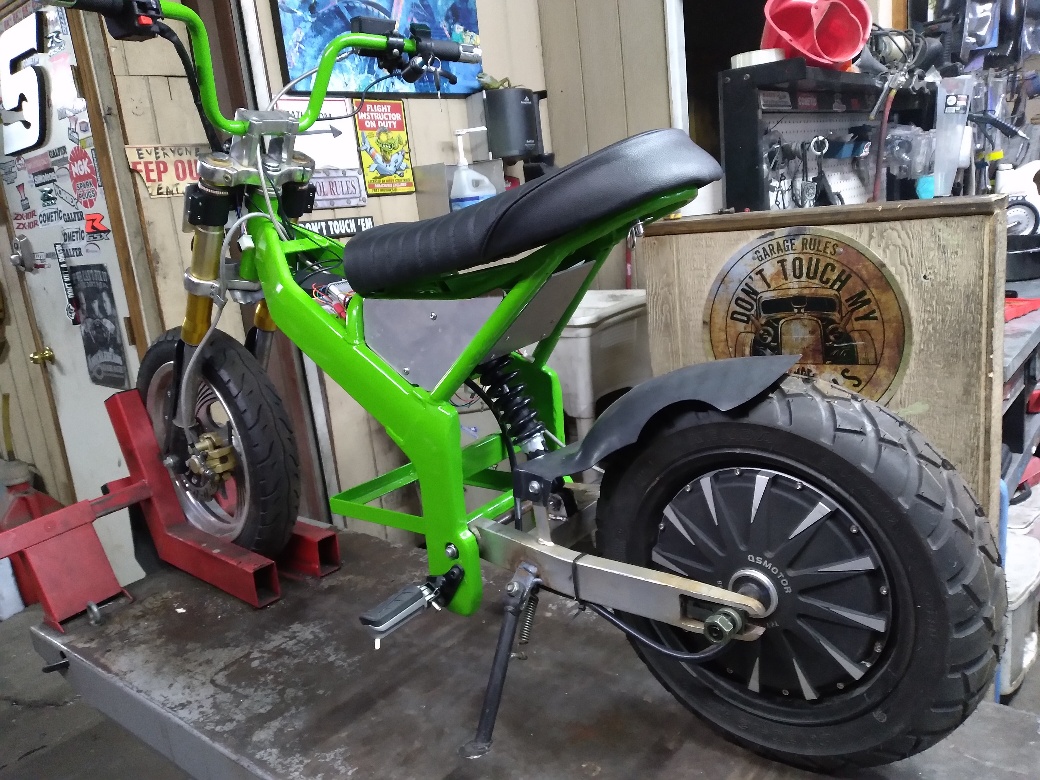

Putting it back together

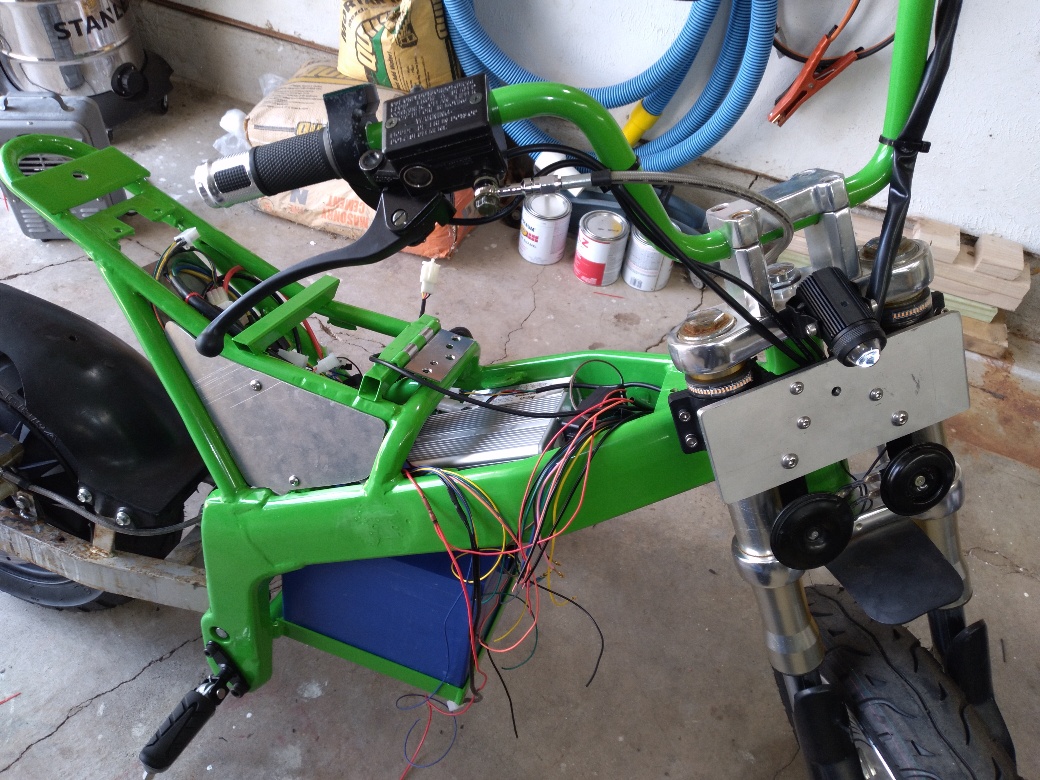

Wiring it up.
Drivable.
Ready for plates
Added more lighting

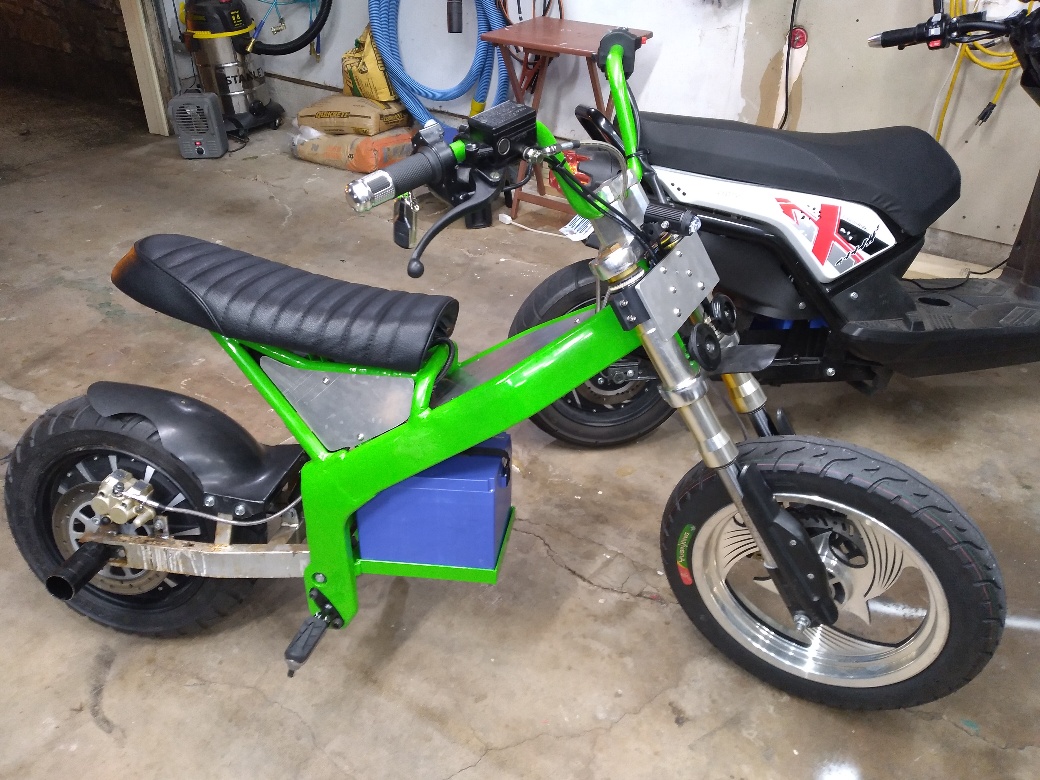

Went with aluminum to enclose the battery box. Total bike weight 160 pounds

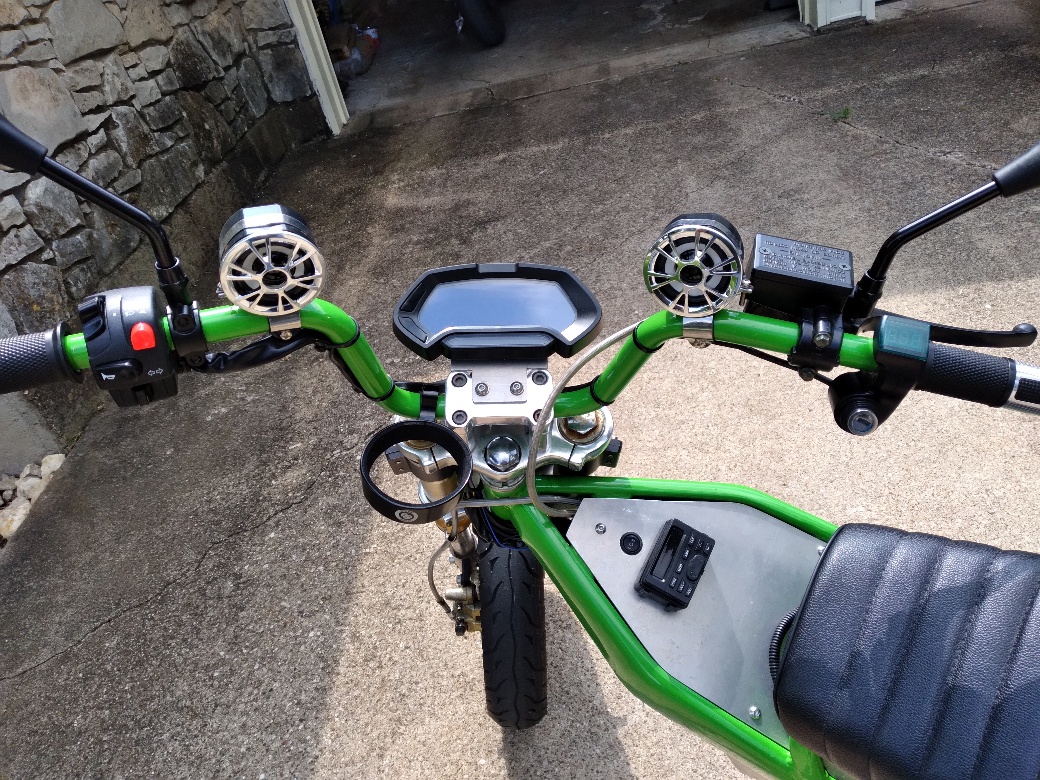

Added cup holder and bluetooth speakers. Made a custom bracket to hold CT-22 Speedometer

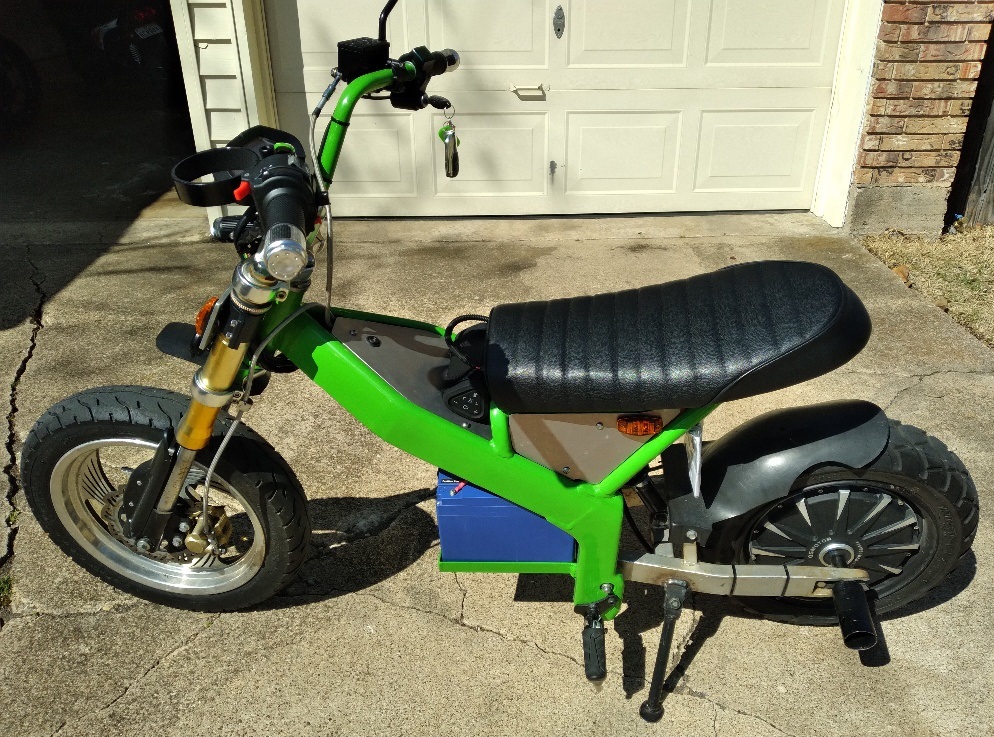

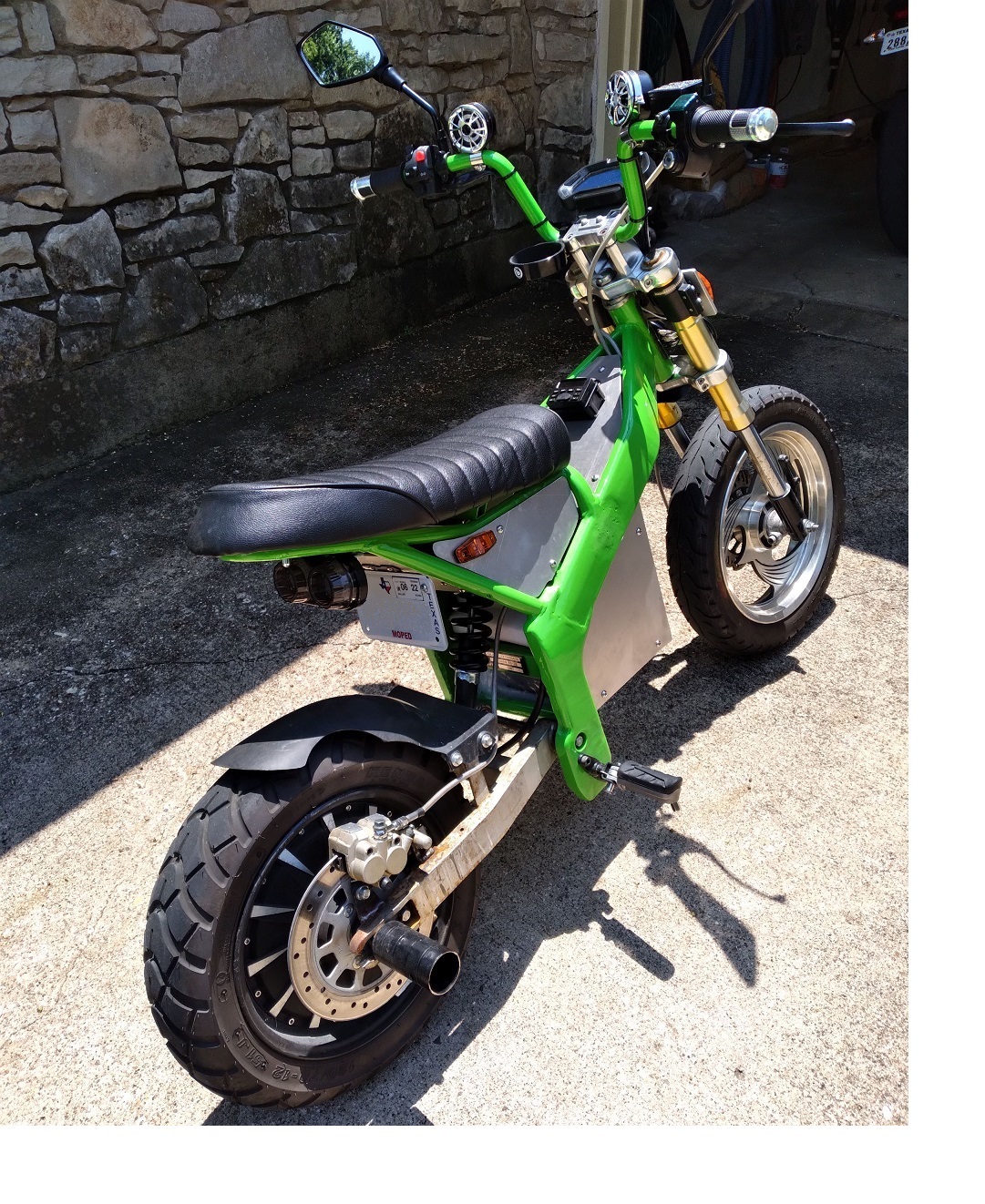

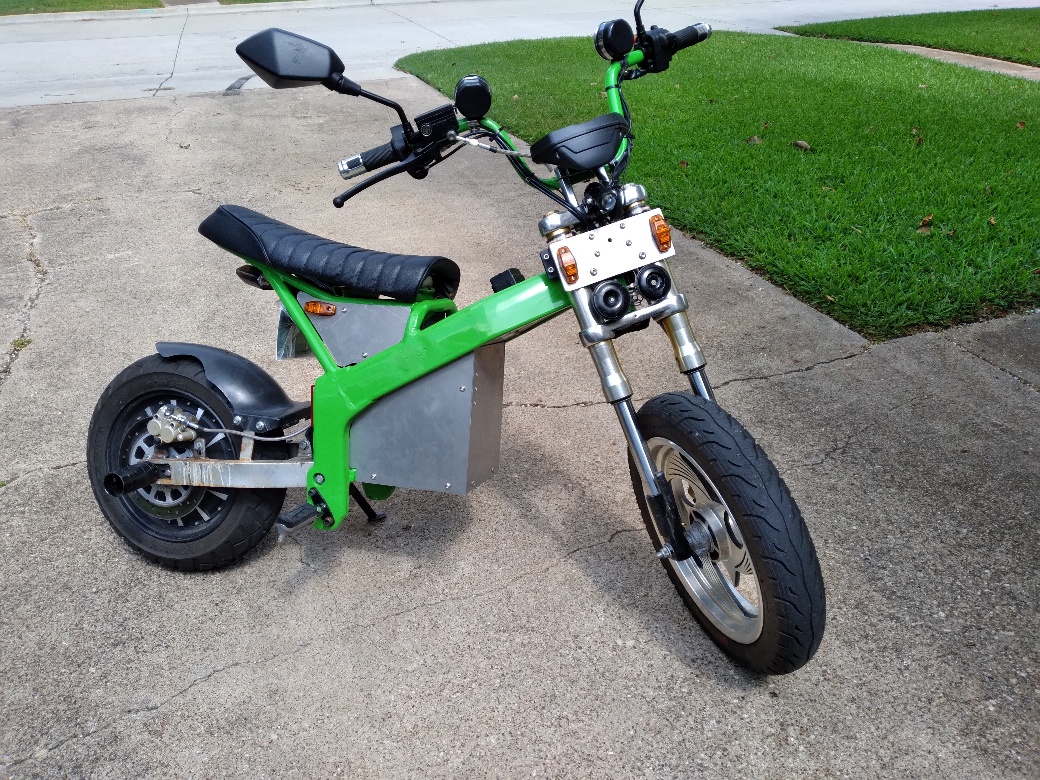

Ready to ride. Range 18 miles. Top speed 45 MPH

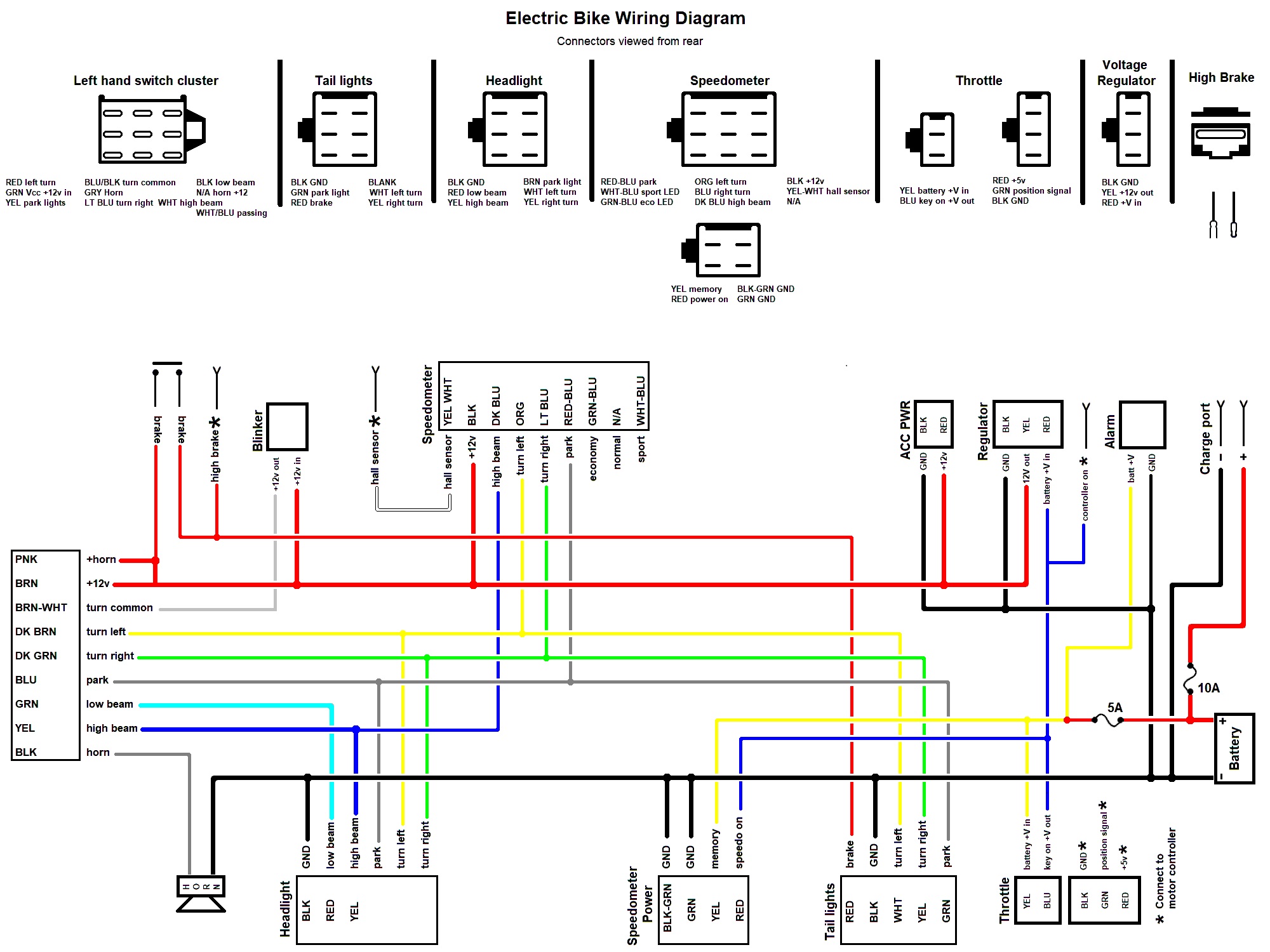

Electric bike wiring diagram. Click image for detailed view.
