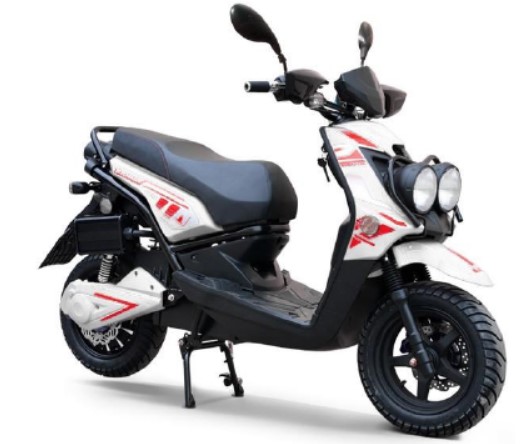

Click here for original ad
............
Purchased a 2019 Baodiao Boom 576Z electric scooter from Red Fox Power Sports in California for my wife. Original ad stated 40MPH and range of 40 miles. Actual bike max speed was 31MPH and 20 mile range. After installing 4000 watt motor, 4000 watt controller and dumping the lead acid batteries for Lithium Phosphate (LifePO4), the bike now tops out at 70MPH and range if 35 miles. Fully charged in 8 hours. Charges in 3.5 hours if internal charger and external charger are connected. Added bluetooth speakers and cup holder too.

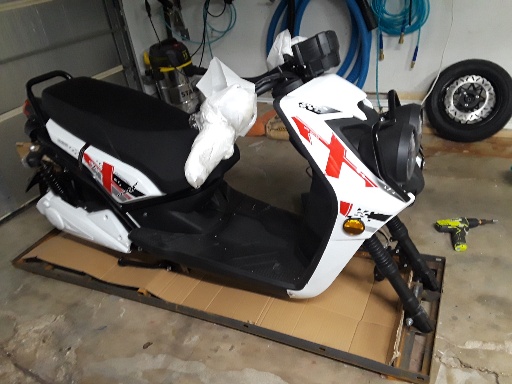

Arrives in a crate

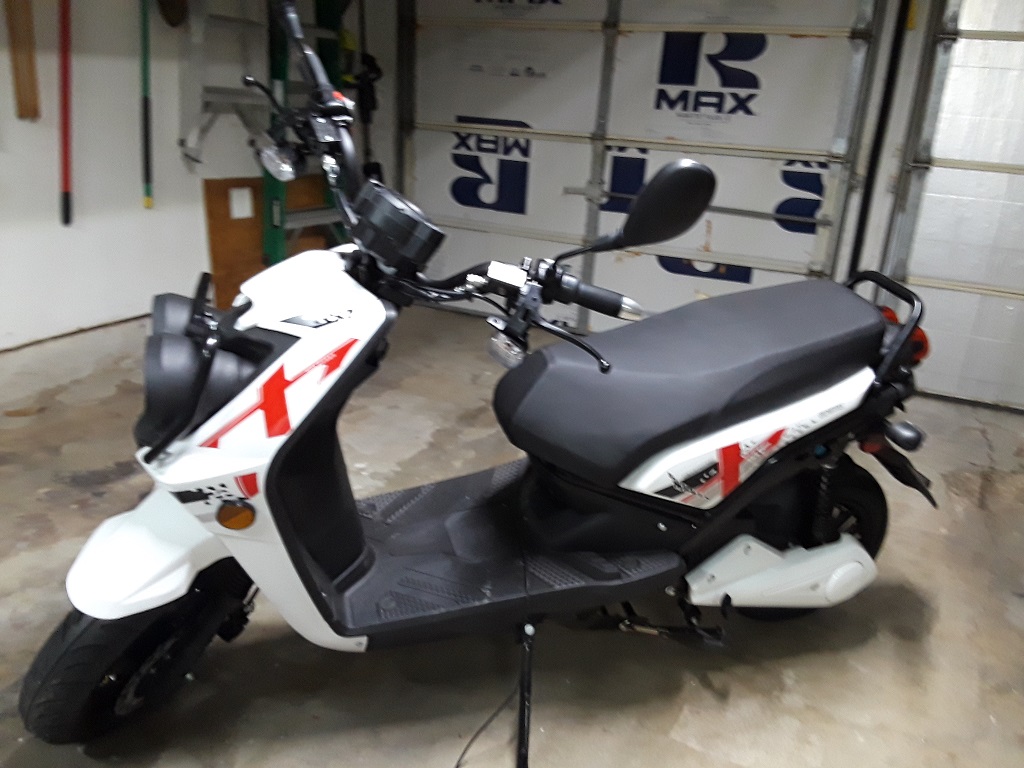

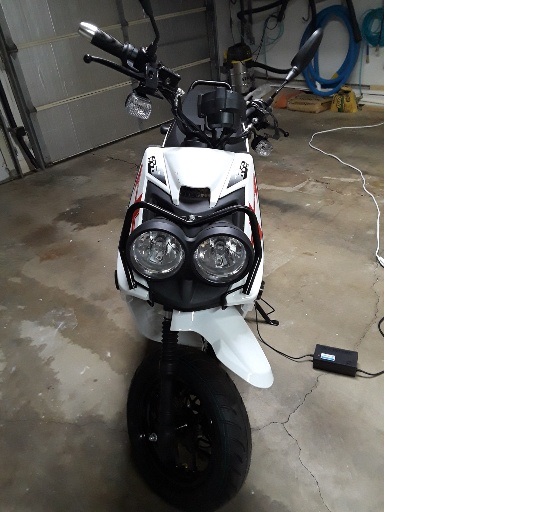

Assembled with help of family
Original controller was 80 amps. Upgraded to 250 amps.

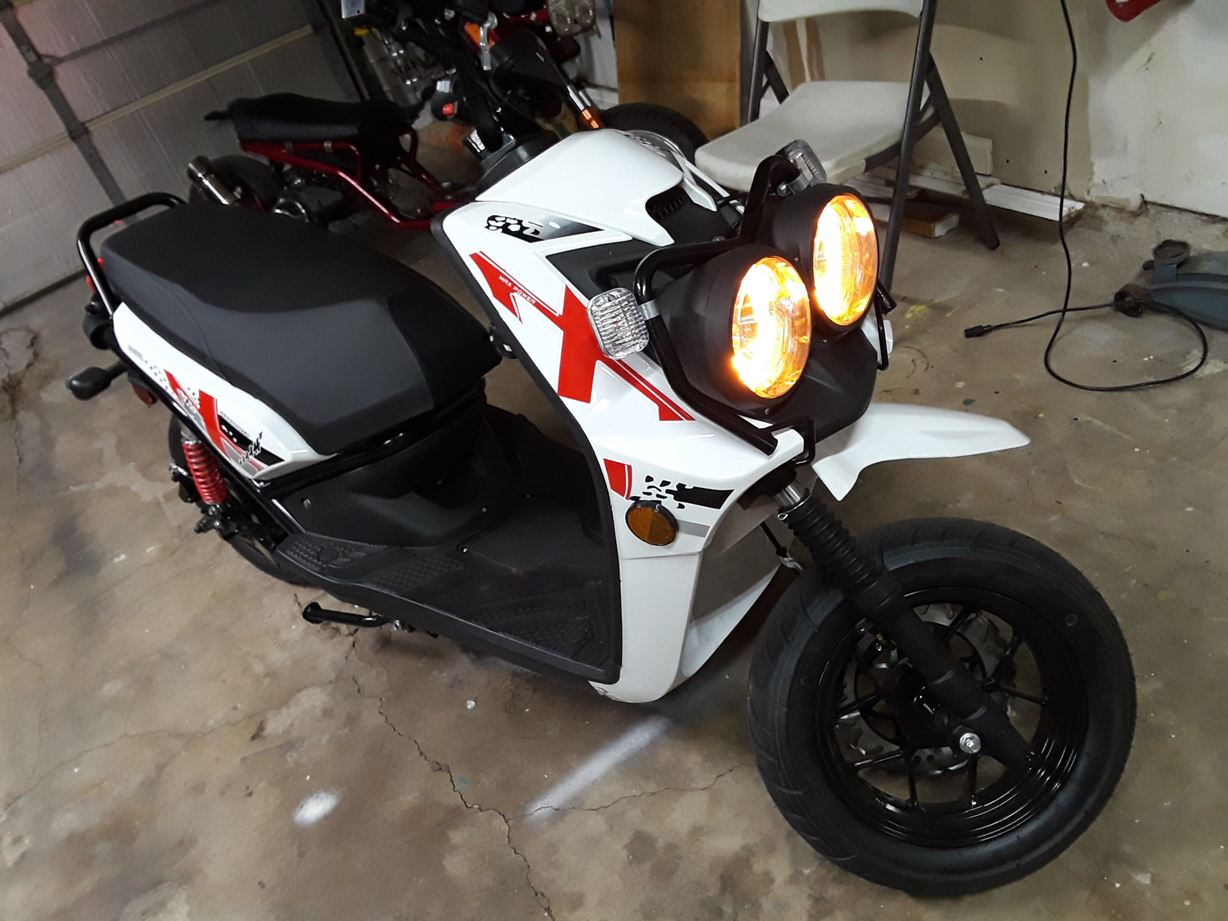

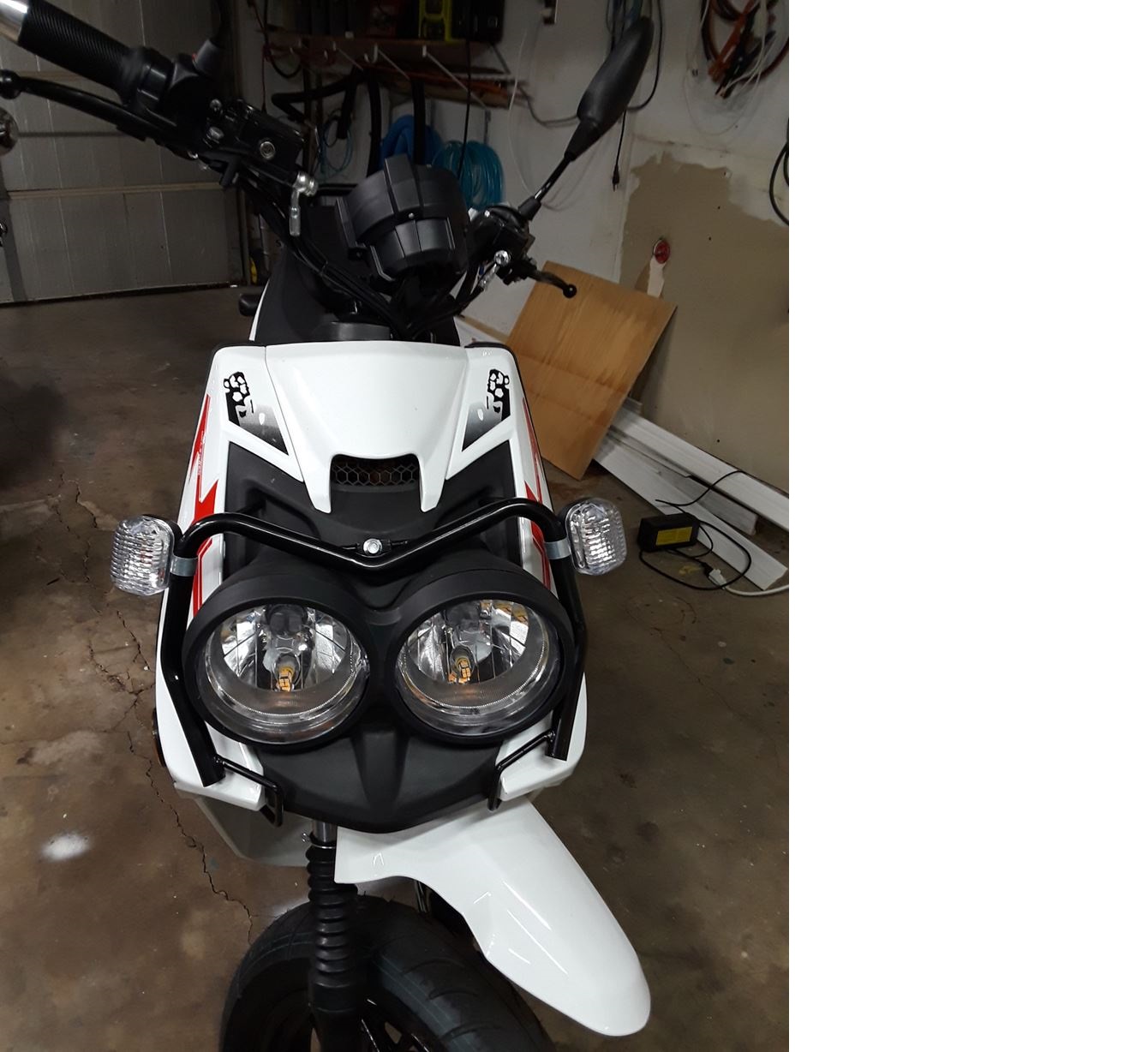

Moved turn signals to fairing and installed LED headlights.

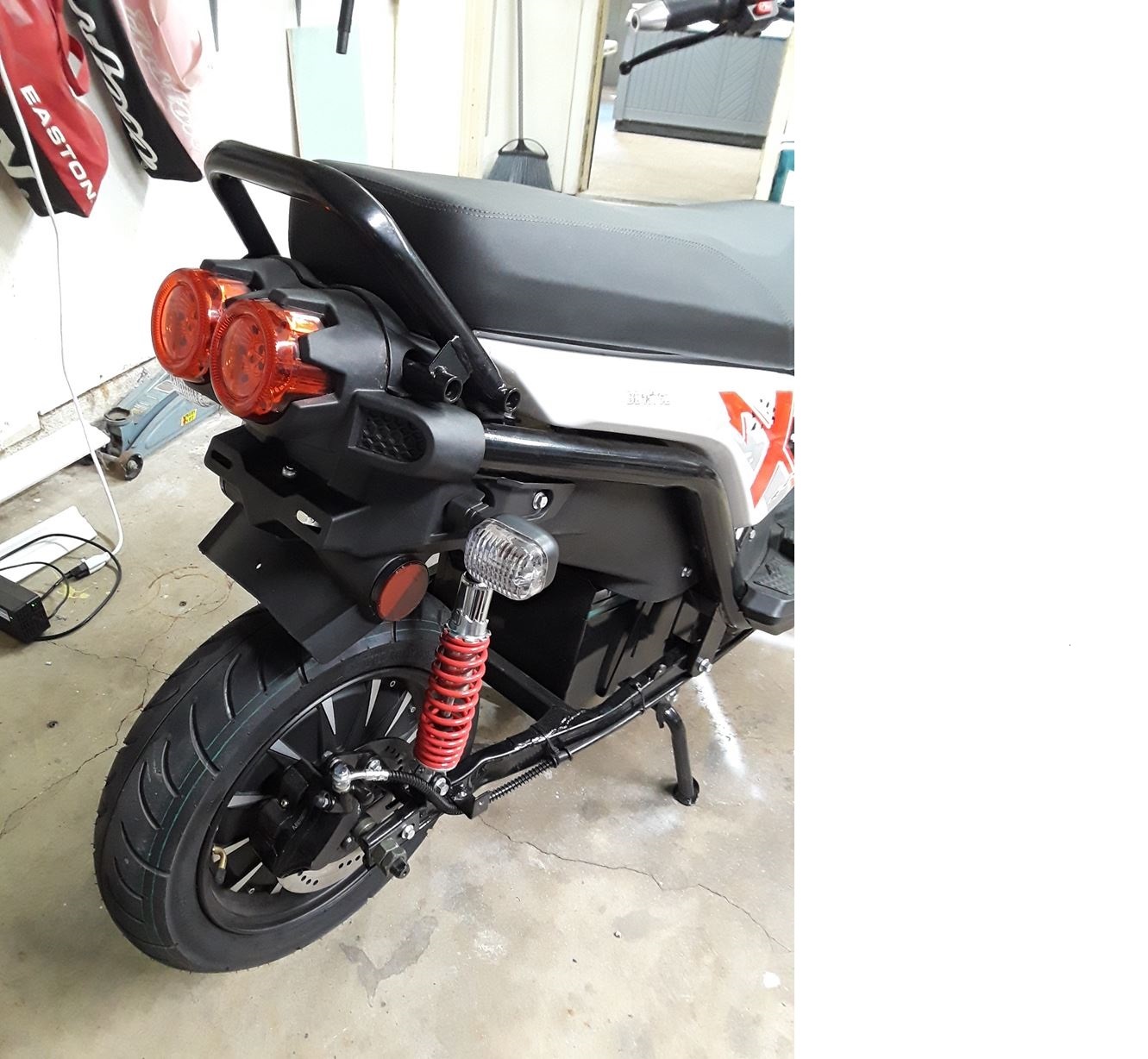

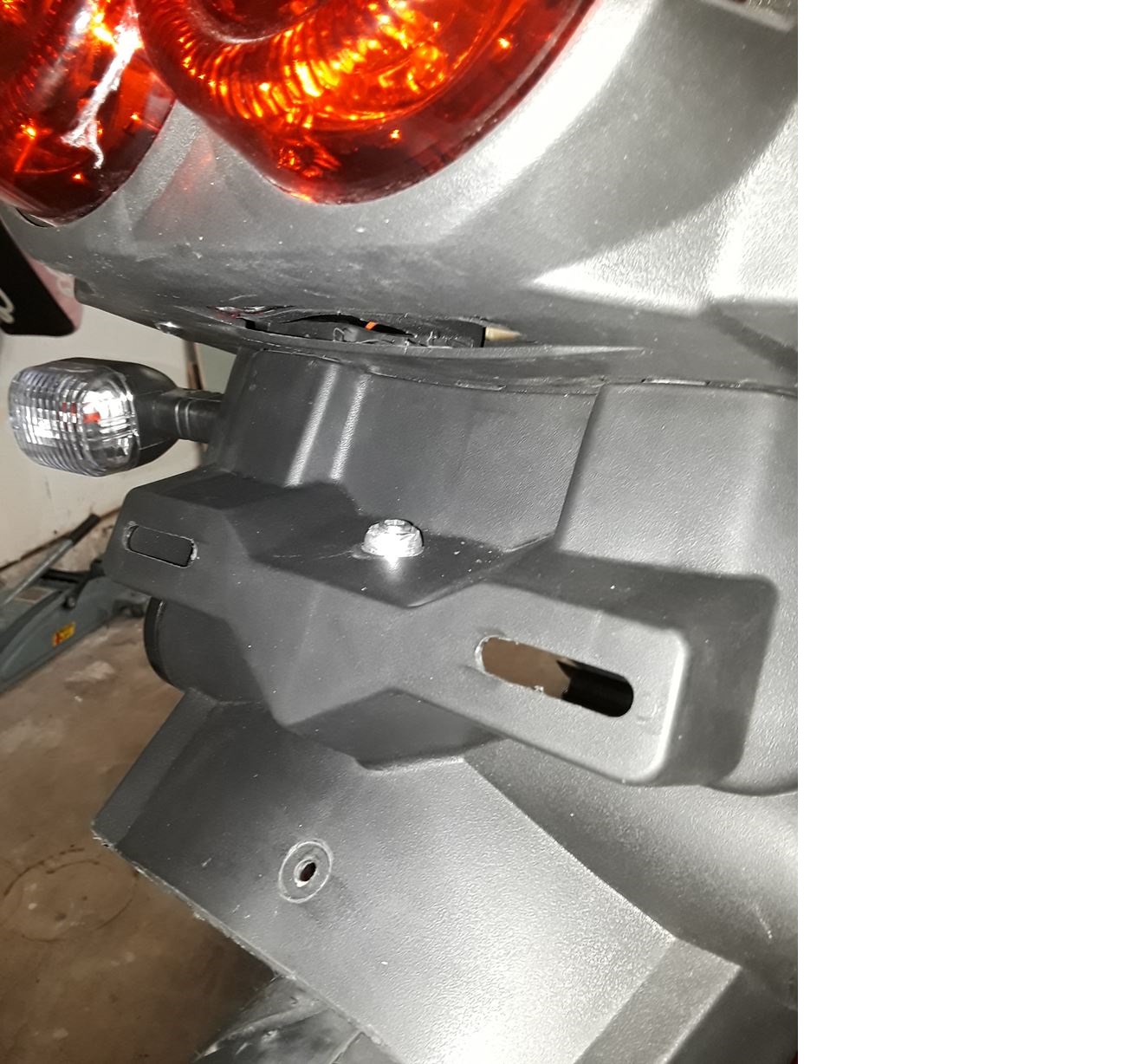

Shortened mud guard.

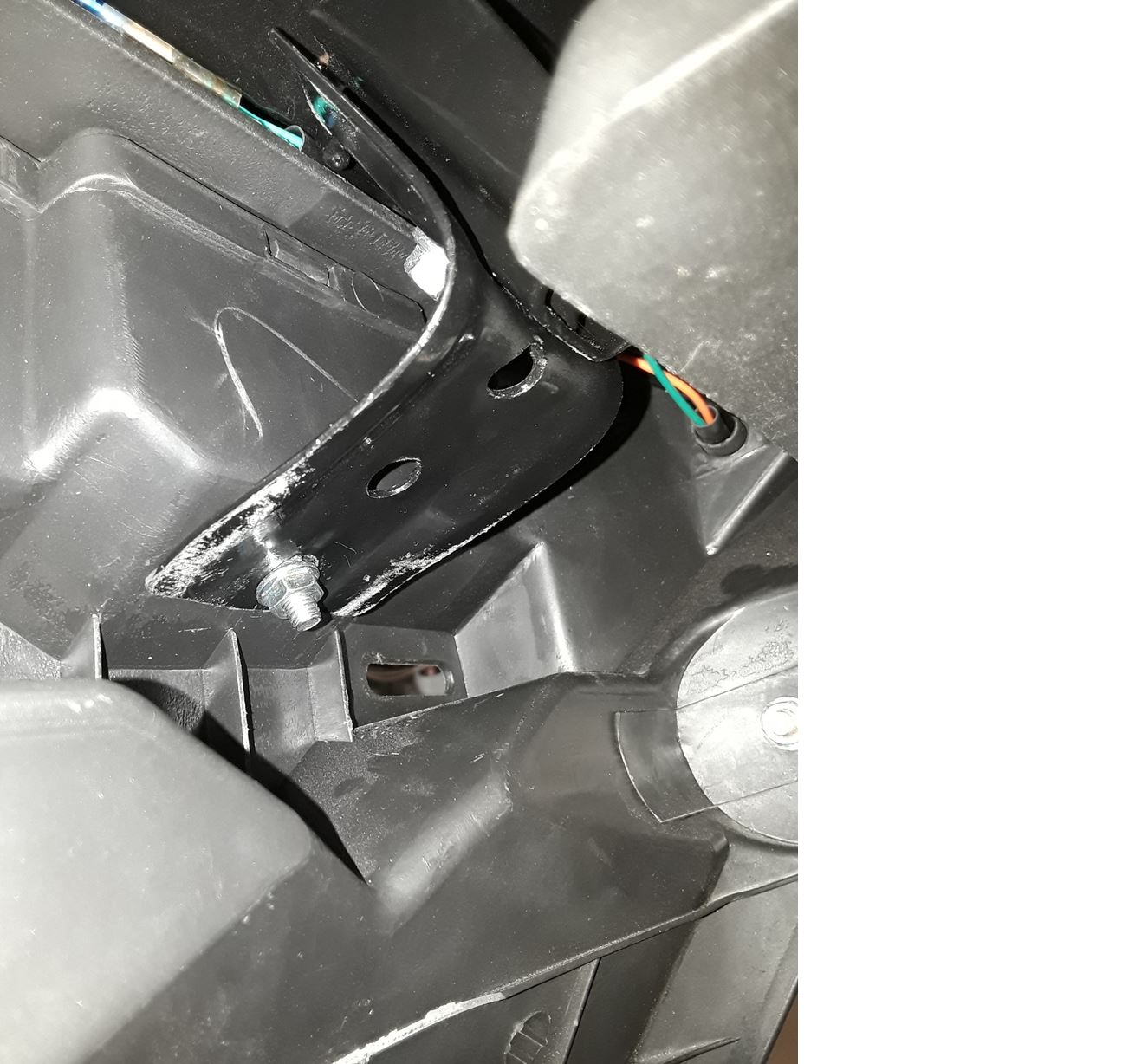

Shorten mud flap support

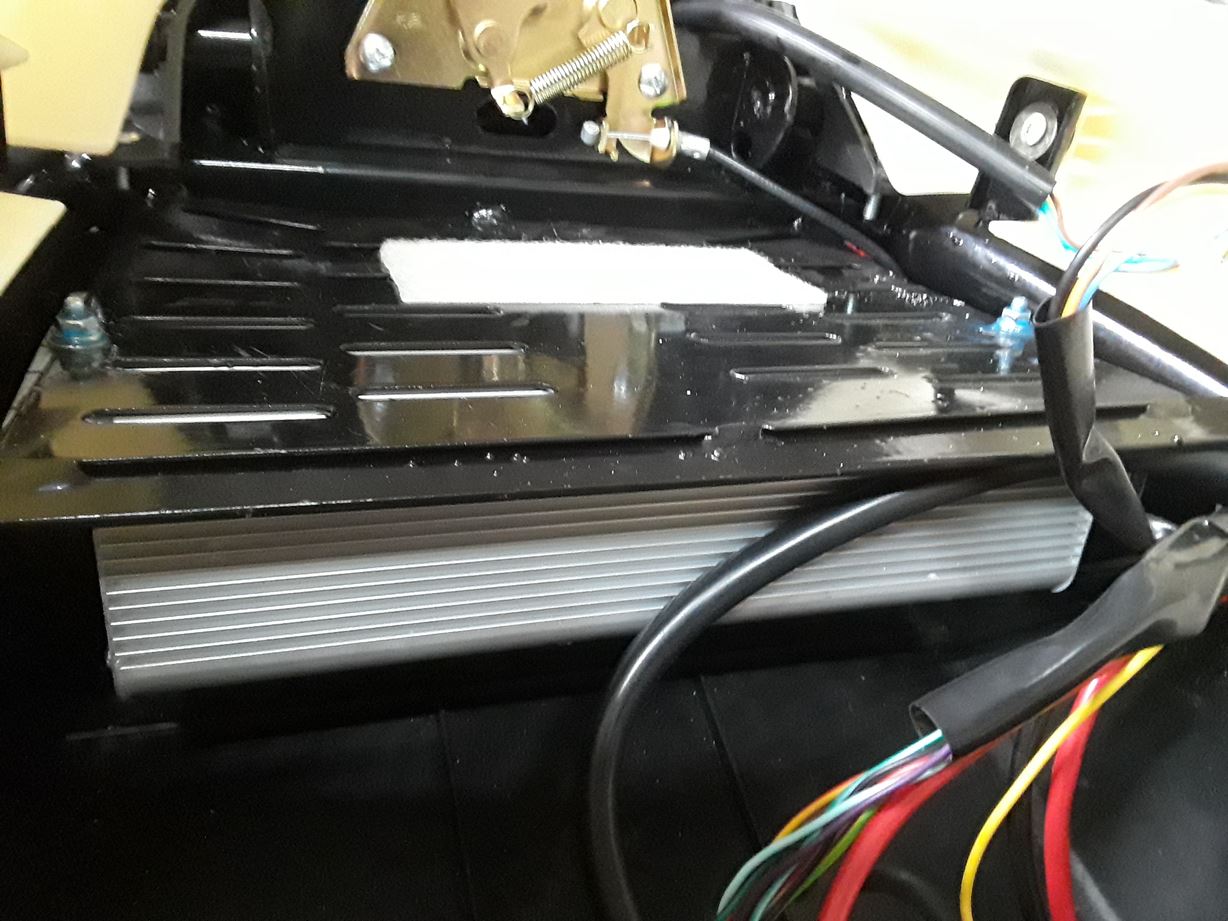

Larger controller mounted

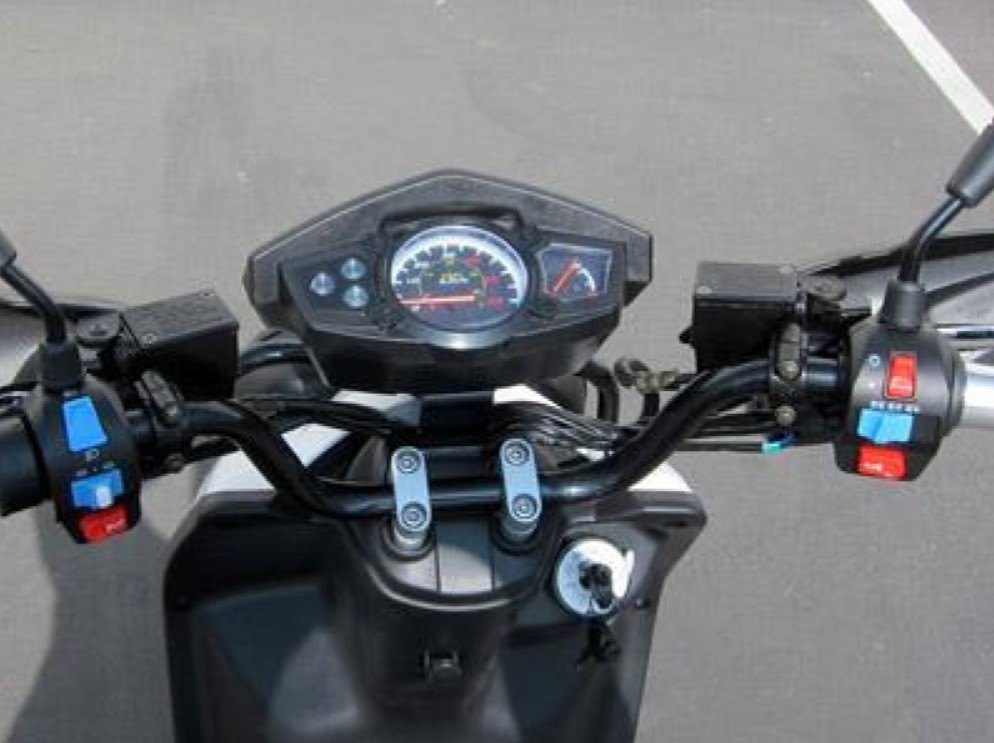

Original speedometer.

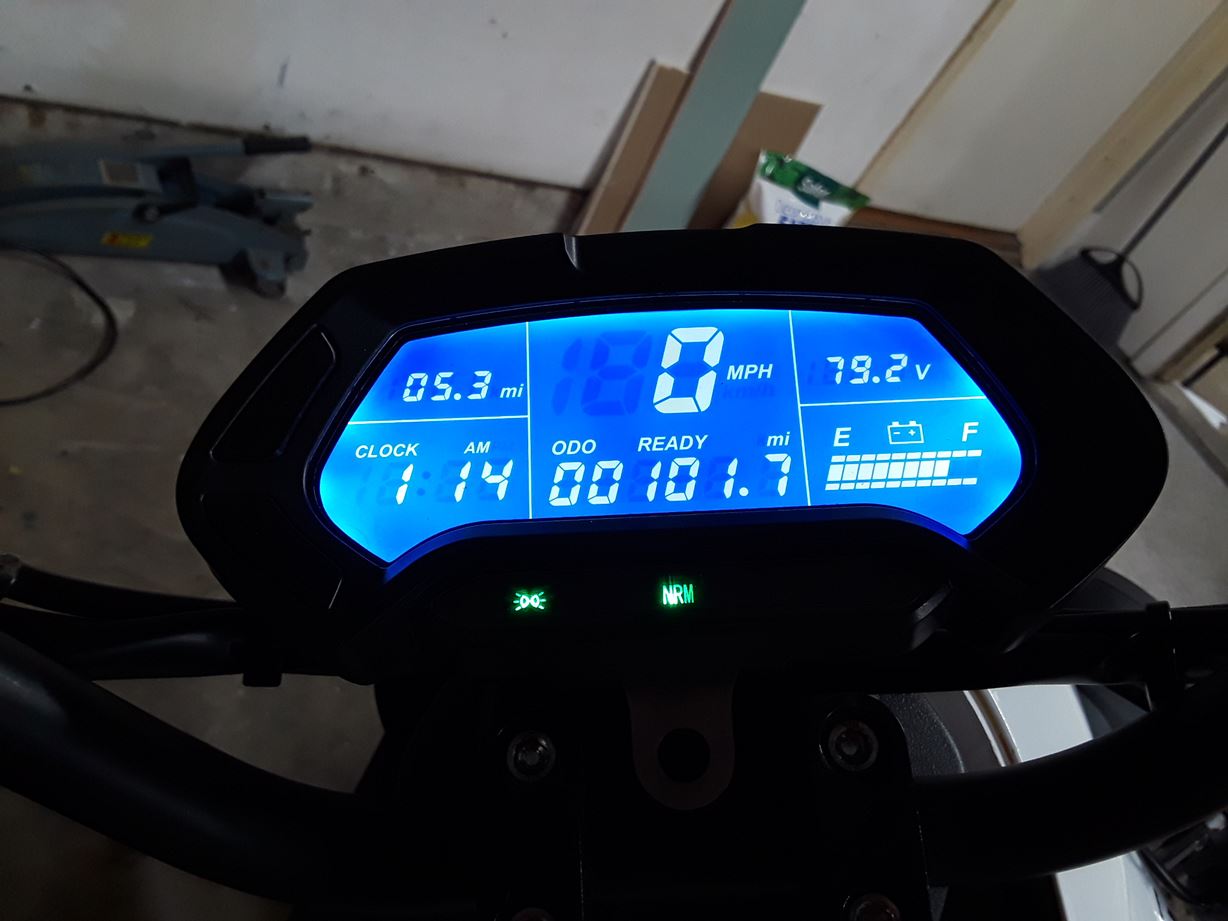

CT-22 Speedometer installed
DRL converted to LED

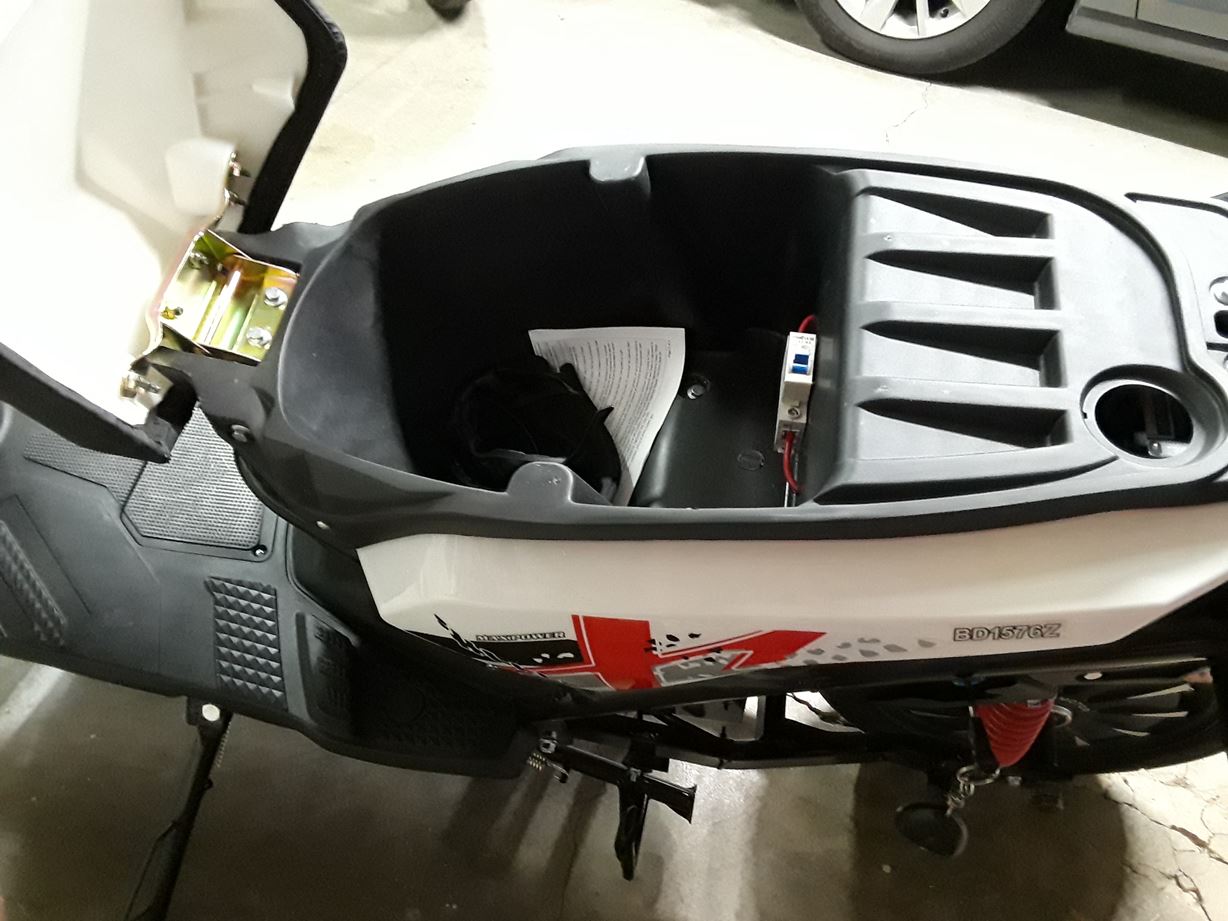

Trunk

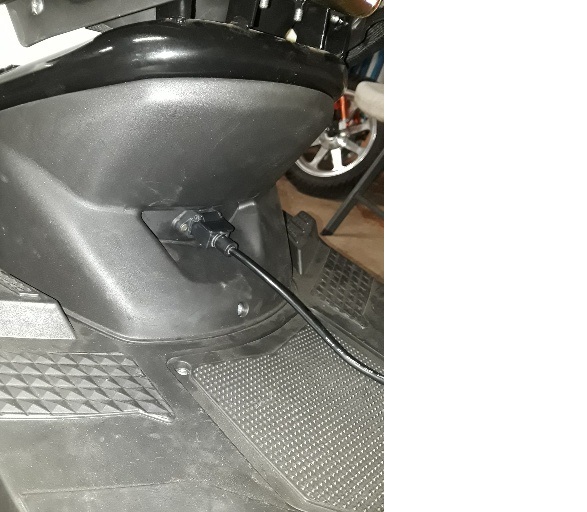

Charging port converted from 72vdc to 120vac onboard
QS Motor 4000 watt model 260

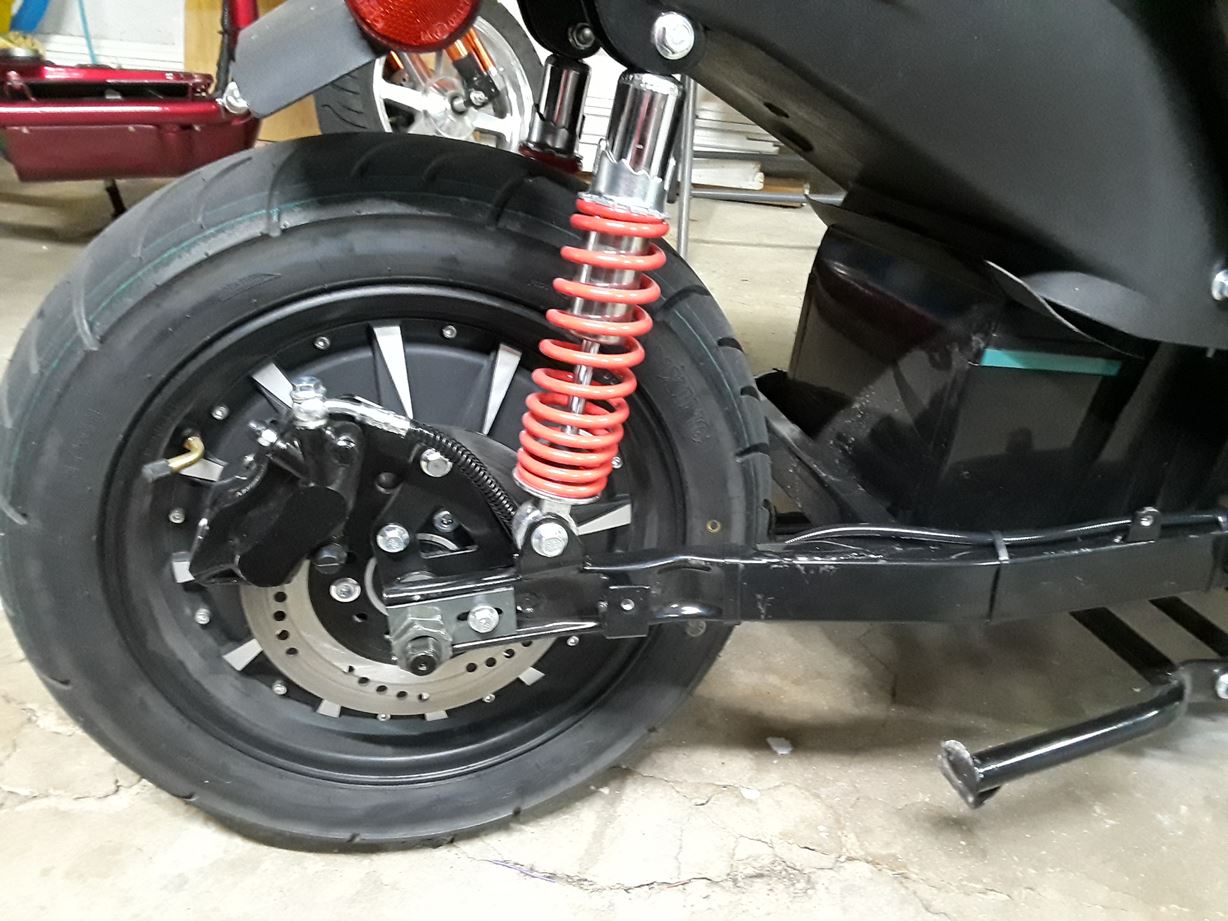

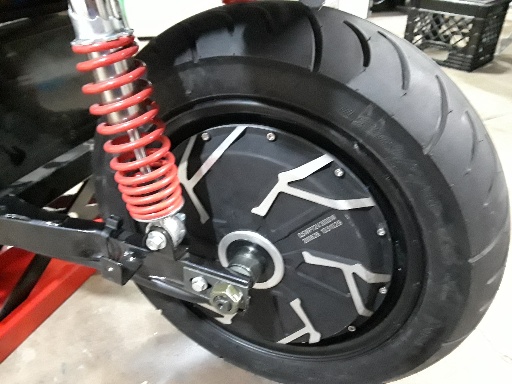

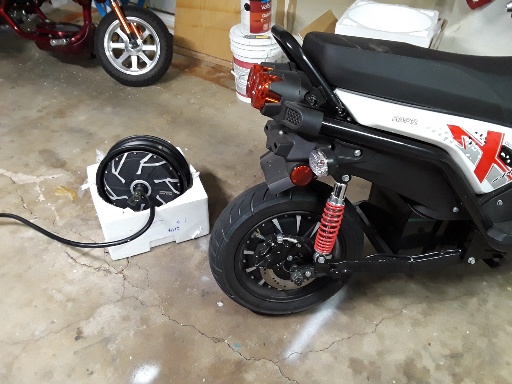

More powerful motor installed

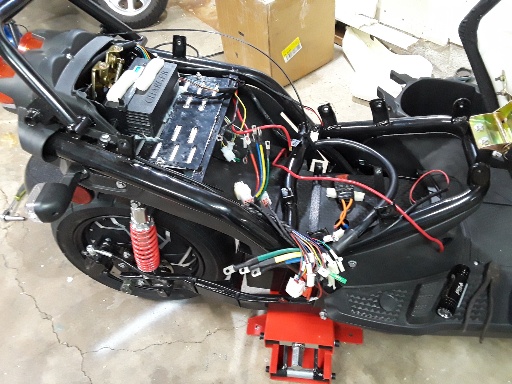

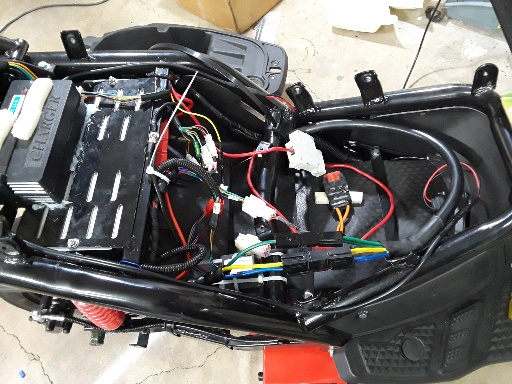

Lots of connections to make
Had to buy a special crimper for the Anderson 75 connections

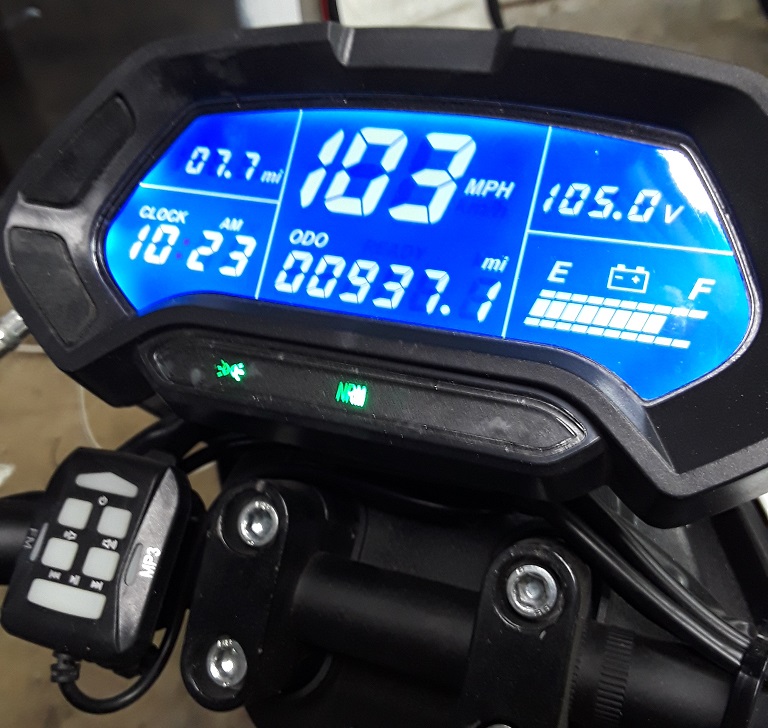

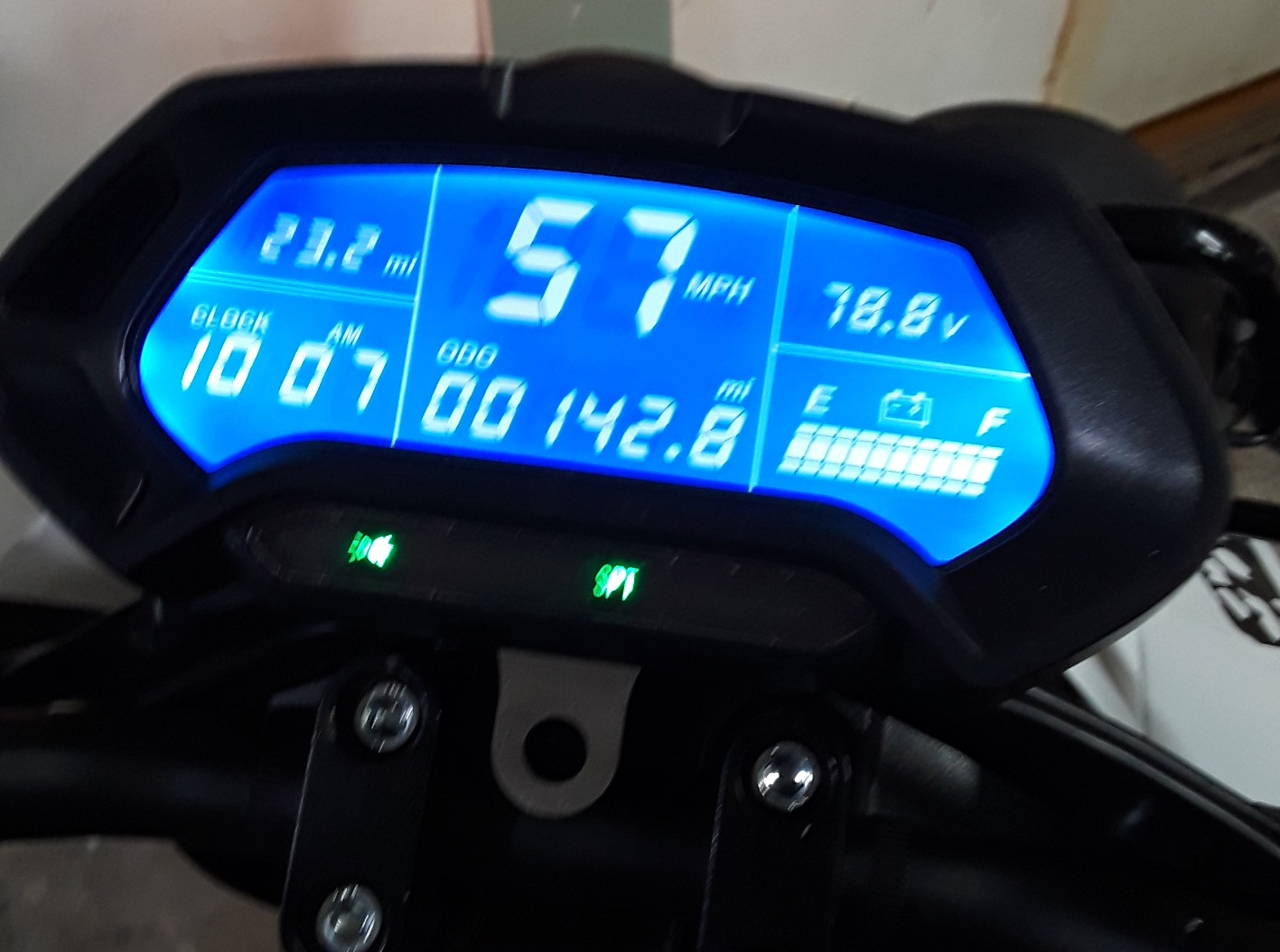

New Top speed with controller installed

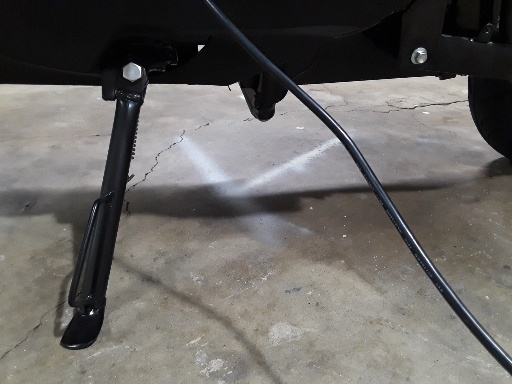

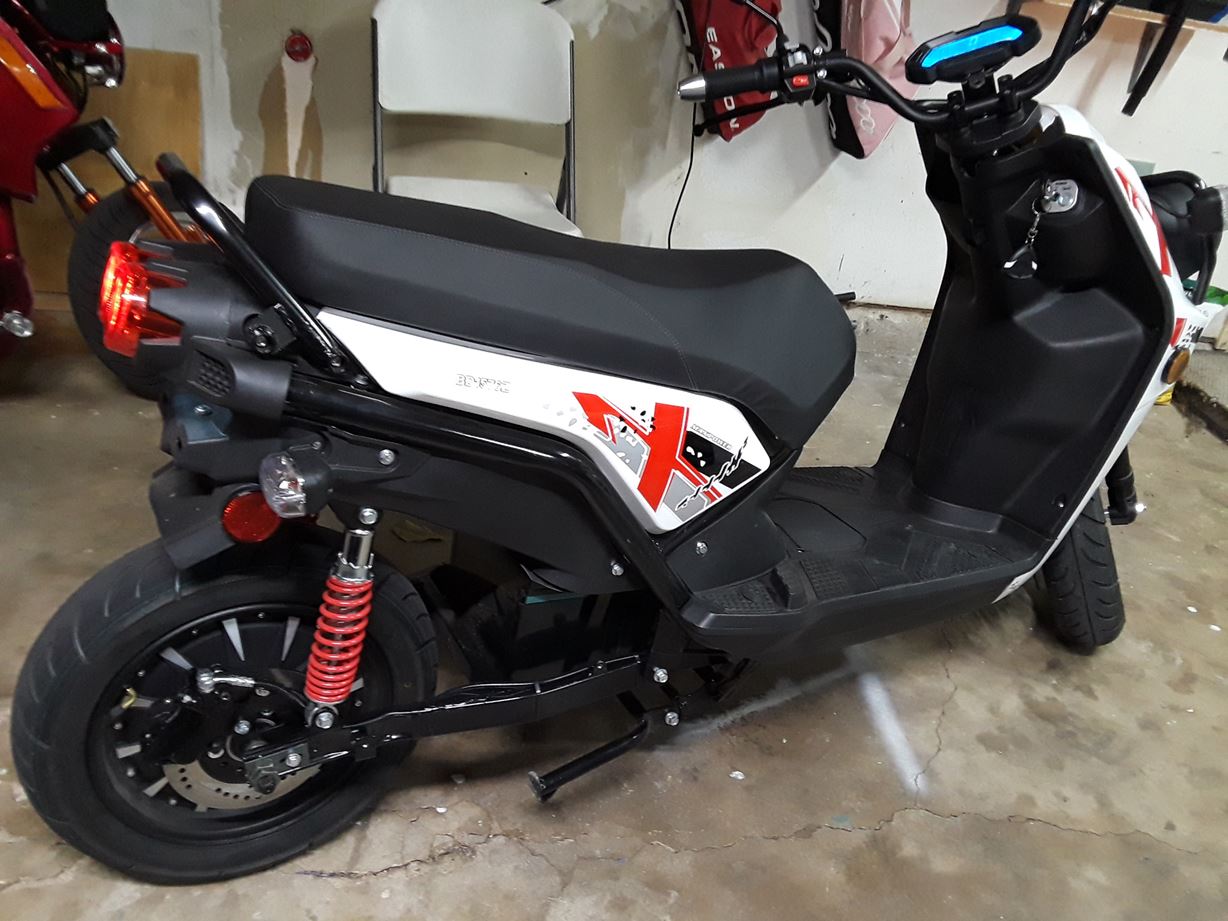

Kickstand shortened because shocks were shortened

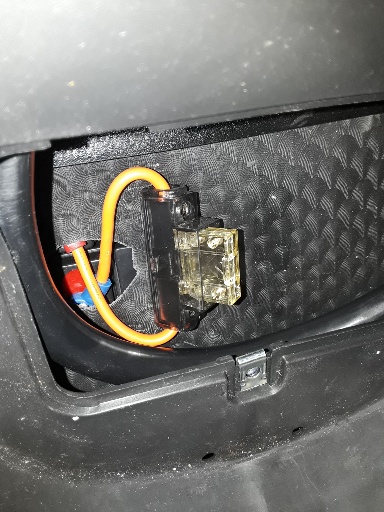

Installed a more common fuse type
96 volt 35 Amp hour LifePO4 battery installed
After changing Battery, Controller and motor for a new top speed no load.
